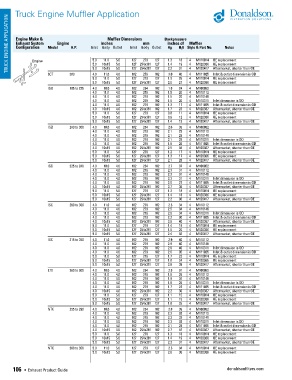

Page 108 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application
TRUCK ENGINE APPLICATION Engine Make & Model Engine H.P. Inlet Body Outlet Inlet Body Outlet Backpressure Notes

Muffler Dimensions
inches
Exhaust System
mm
inches of Muffler
Configuration
Hg
H 2 0 Style & Part No.
11.0
19
4
M120366 OE replacement
5.0
127 254x381 127
5.0
1.4
10x15
5.0
127 254x381 127
4
31
5.0
M120417 Aftermarket, shorter than OE
2.2
M111025 Inlet & outlet dimension is OD
11.0
4
40
6CT 300 5.0 10x15 5.0 127 279 127 1.3 18 4 M110014 OE replacement
4.0
3.0
102
4.0
279
102
5.0 11.0 5.0 127 279 127 1.9 26 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 2.0 27 4 M120366 OE replacement
ISB 185 to 225 4.0 10.0 4.0 102 254 102 1.8 24 4 M100052
4.0 11.0 4.0 102 279 102 1.5 20 4 M110112
4.0 11.0 4.0 102 279 102 1.5 20 4 M110148
4.0 11.0 4.0 102 279 102 1.5 20 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 1.3 17 4 M111025 Inlet & outlet dimension is OD
4.0 10x15 4.0 102 254x381 102 1.7 23 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 0.8 11 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 0.9 12 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 1.4 19 4 M120417 Aftermarket, shorter than OE
ISB 240 to 300 4.0 10.0 4.0 102 254 102 2.6 35 4 M100052
4.0 11.0 4.0 102 279 102 2.1 29 4 M110112
4.0 11.0 4.0 102 279 102 2.1 29 4 M110148
4.0 11.0 4.0 102 279 102 2.1 29 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 1.9 26 4 M111025 Inlet & outlet dimension is OD
4.0 10x15 4.0 102 254x381 102 2.5 34 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 1.2 17 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.3 17 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.1 28 4 M120417 Aftermarket, shorter than OE
ISC 225 to 240 4.0 10.0 4.0 102 254 102 2.7 37 4 M100052
4.0 11.0 4.0 102 279 102 2.3 31 4 M110112
4.0 11.0 4.0 102 279 102 2.3 31 4 M110148
4.0 11.0 4.0 102 279 102 2.3 31 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 2.0 27 4 M111025 Inlet & outlet dimension is OD
4.0 10x15 4.0 102 254x381 102 2.7 36 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 1.3 18 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.4 18 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.2 30 4 M120417 Aftermarket, shorter than OE
ISC 260 to 300 4.0 11.0 4.0 102 279 102 2.5 34 4 M110112
4.0 11.0 4.0 102 279 102 2.5 34 4 M110148
4.0 11.0 4.0 102 279 102 2.5 34 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 2.2 30 4 M111025 Inlet & outlet dimension is OD
4.0 10x15 4.0 102 254x381 102 2.9 40 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 1.4 19 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.5 20 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.4 33 4 M120417 Aftermarket, shorter than OE
ISC 315 to 350 4.0 11.0 4.0 102 279 102 2.9 40 4 M110112
4.0 11.0 4.0 102 279 102 2.9 40 4 M110148
4.0 11.0 4.0 102 279 102 2.9 40 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 2.6 35 4 M111025 Inlet & outlet dimension is OD
5.0 11.0 5.0 127 279 127 1.7 23 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.8 24 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.8 38 4 M120417 Aftermarket, shorter than OE
L10 260 to 300 4.0 10.0 4.0 102 254 102 2.3 31 4 M100052
4.0 11.0 4.0 102 279 102 1.9 26 4 M110112
4.0 11.0 4.0 102 279 102 1.9 26 4 M110148
4.0 11.0 4.0 102 279 102 1.9 26 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 1.7 22 4 M111025 Inlet & outlet dimension is OD
4.0 10x15 4.0 102 254x381 102 2.2 30 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 1.1 15 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.1 15 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 1.8 25 4 M120417 Aftermarket, shorter than OE
NTC 255 to 290 4.0 10.0 4.0 102 254 102 2.8 39 4 M100052
4.0 11.0 4.0 102 279 102 2.3 32 4 M110112
4.0 11.0 4.0 102 279 102 2.3 32 4 M110148
4.0 11.0 4.0 102 279 102 2.3 32 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 2.1 28 4 M111025 Inlet & outlet dimension is OD
4.0 10x15 4.0 102 254x381 102 2.7 37 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 1.3 18 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.4 19 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.3 31 4 M120417 Aftermarket, shorter than OE
NTC 300 to 350 5.0 11.0 5.0 127 279 127 2.5 34 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 2.6 36 4 M120366 OE replacement
