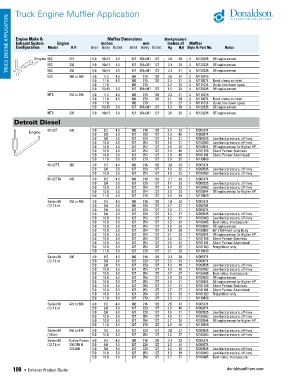

Page 110 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application
TRUCK ENGINE APPLICATION Engine Make & ISC Engine 315 Inlet Body Outlet Inlet Body Outlet Backpressure 3 M120235 OE replacement

Muffler Dimensions
inches of Muffler
mm
inches
Exhaust System
Configuration
Model
H.P.
Notes
Hg
H 2 0 Style & Part No.
10x15

5.0
127 254x381 127
2.0
28
5.0
2.3
31
3
M120235 OE replacement
10x15
350
5.0
5.0
127 254x381 127
ISC
4.0
11.0
4.0
M110479
L10
260 to 300
102
34
ISC 330 5.0 10x15 5.0 127 254x381 127 2.1 29 3 M120235 OE replacement
3
279
102
2.5
4.0 11.0 4.0 102 279 102 2.3 31 3 M110674 Band clamp on inlet
4.0 11.0 102 279 2.2 30 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 1.5 20 3 M120235 OE replacement
NTC 255 to 290 4.0 11.0 4.0 102 279 102 2.3 31 3 M110479
4.0 11.0 4.0 102 279 102 2.1 28 3 M110674 Band clamp on inlet
4.0 11.0 102 279 2.0 27 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 1.3 18 3 M120235 OE replacement
NTC 335 5.0 10x15 5.0 127 254x381 127 2.8 38 3 M120235 OE replacement
Detroit Diesel
8V-92T 430 4.0 8.5 4.0 102 216 102 2.4 33 1 M085171
5.0 9.0 5.0 127 229 127 2.9 40 1 M090074
5.0 9.0 5.0 127 229 127 1.6 21 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.6 21 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.6 36 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.9 40 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.9 40 1 M101181 Silent Partner Aluminized
5.0 11.0 5.0 127 279 127 2.6 35 1 M110849
8V-92TT 365 4.0 8.5 4.0 102 216 102 2.9 39 1 M085171
5.0 9.0 5.0 127 229 127 1.9 25 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.9 25 1 M100463 Low backpressure, off-hwy
8V-92TTA 445 4.0 8.5 4.0 102 216 102 2.7 36 1 M085171
5.0 9.0 5.0 127 229 127 1.7 23 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.7 23 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.9 39 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.9 39 1 M110849
Series 60 350 to 400 4.0 8.5 4.0 102 216 102 1.9 26 1 M085171
(12.7 Ltr) 4.0 9.0 5.0 102 229 127 2.7 37 1 M090781
5.0 9.0 5.0 127 229 127 2.3 31 1 M090074
5.0 9.0 5.0 127 229 127 1.2 17 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.2 17 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.5 34 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.6 35 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.8 38 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 2.1 28 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.5 34 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.5 34 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.6 35 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.1 28 1 M110849
Series 60 430 4.0 8.5 4.0 102 216 102 2.1 28 1 M085171
(12.7 Ltr) 5.0 9.0 5.0 127 229 127 2.5 34 1 M090074
5.0 9.0 5.0 127 229 127 1.3 18 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.3 18 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.7 37 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.8 39 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.3 31 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.7 37 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.7 37 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.8 39 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.2 31 1 M110849
Series 60 470 to 500 4.0 8.5 4.0 102 216 102 2.5 33 1 M085171
(12.7 Ltr) 5.0 9.0 5.0 127 229 127 3.0 40 1 M090074
5.0 9.0 5.0 127 229 127 1.6 21 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.6 21 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.7 36 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.6 36 1 M110849
Series 60 550 to 575 5.0 9.0 5.0 127 229 127 2.0 27 1 M090535 Low backpressure, off-hwy
(14 Ltr) 5.0 10.0 5.0 127 254 127 2.0 27 1 M100463 Low backpressure, off-hwy
Series 60 Cruise Power 4.0 8.5 4.0 102 216 102 2.1 28 1 M085171
(12.7 Ltr) 330/350 & 5.0 9.0 5.0 127 229 127 2.5 34 1 M090074
370/430 5.0 9.0 5.0 127 229 127 1.3 18 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.3 18 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.7 37 1 M100465 Best value, most popular
