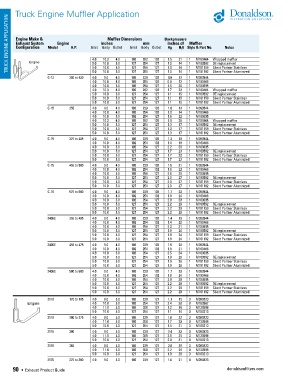

Page 92 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application
TRUCK ENGINE APPLICATION Engine Make & Model Engine H.P. Inlet Body Outlet Inlet Body Outlet Backpressure 1 M100464 Wrapped muffler

Muffler Dimensions
inches
inches of Muffler
mm
Exhaust System
Configuration
Notes
H 2 0 Style & Part No.
Hg
21
102
1.5
102
4.0
4.0
10.3
262
10.0
1.0
5.0
5.0
254
127
127
M101159 Silent Partner Stainless
1
14
5.0
M101182 Silent Partner Aluminized
5.0
254
127
127
10.0
14
1.0
1
4.0
C-12 380 to 430 5.0 10.0 5.0 127 254 127 1.0 14 1 M100582 OE replacement
9.0
4.0
102
0.9
M090544
229
1
12
102
4.0 10.0 4.0 102 254 102 0.9 12 1 M100466
4.0 10.0 5.0 102 254 127 1.5 20 1 M100695
4.0 10.3 4.0 102 262 102 1.7 23 1 M100464 Wrapped muffler
5.0 10.0 5.0 127 254 127 1.1 15 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.1 15 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.1 15 1 M101182 Silent Partner Aluminized
C-15 355 4.0 9.0 4.0 102 229 102 1.0 13 1 M090544
4.0 10.0 4.0 102 254 102 1.0 14 1 M100466
4.0 10.0 5.0 102 254 127 1.6 22 1 M100695
4.0 10.3 4.0 102 262 102 1.9 26 1 M100464 Wrapped muffler
5.0 10.0 5.0 127 254 127 1.3 17 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.3 17 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.3 17 1 M101182 Silent Partner Aluminized
C-15 375 to 435 4.0 9.0 4.0 102 229 102 1.3 18 1 M090544
4.0 10.0 4.0 102 254 102 1.4 19 1 M100466
4.0 10.0 5.0 102 254 127 2.2 30 1 M100695
5.0 10.0 5.0 127 254 127 1.7 23 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.7 23 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.7 23 1 M101182 Silent Partner Aluminized
C-15 455 to 500 4.0 9.0 4.0 102 229 102 1.5 21 1 M090544
4.0 10.0 4.0 102 254 102 1.6 22 1 M100466
4.0 10.0 5.0 102 254 127 2.6 35 1 M100695
5.0 10.0 5.0 127 254 127 2.0 27 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 2.0 27 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.0 27 1 M101182 Silent Partner Aluminized
C-16 575 to 600 4.0 9.0 4.0 102 229 102 1.7 23 1 M090544
4.0 10.0 4.0 102 254 102 1.8 24 1 M100466
4.0 10.0 5.0 102 254 127 2.8 38 1 M100695
5.0 10.0 5.0 127 254 127 2.2 29 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 2.2 29 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.2 29 1 M101182 Silent Partner Aluminized
3406E 355 to 435 4.0 9.0 4.0 102 229 102 1.4 19 1 M090544
4.0 10.0 4.0 102 254 102 1.4 20 1 M100466
4.0 10.0 5.0 102 254 127 2.3 31 1 M100695
5.0 10.0 5.0 127 254 127 1.8 24 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.8 24 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.8 24 1 M101182 Silent Partner Aluminized
3406E 455 to 475 4.0 9.0 4.0 102 229 102 1.5 20 1 M090544
4.0 10.0 4.0 102 254 102 1.6 21 1 M100466
4.0 10.0 5.0 102 254 127 2.5 34 1 M100695
5.0 10.0 5.0 127 254 127 1.9 26 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.9 26 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.9 26 1 M101182 Silent Partner Aluminized
3406E 500 to 600 4.0 9.0 4.0 102 229 102 1.7 23 1 M090544
4.0 10.0 4.0 102 254 102 1.8 24 1 M100466
4.0 10.0 5.0 102 254 127 2.8 38 1 M100695
5.0 10.0 5.0 127 254 127 2.2 29 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 2.2 29 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.2 29 1 M101182 Silent Partner Aluminized
3116 170 to 185 4.0 9.0 5.0 102 229 127 1.1 15 3 M090823
4.0 10.0 5.0 102 254 127 2.4 33 3 M100567
4.0 11.8 5.0 102 300 127 1.2 16 3 M120598
5.0 10.0 5.0 127 254 127 1.1 14 3 M100213
3116 200 to 275 4.0 9.0 5.0 102 229 127 1.6 22 3 M090823
4.0 11.8 5.0 102 300 127 1.7 23 3 M120598
5.0 10.0 5.0 127 254 127 1.5 21 3 M100213
3116 300 4.0 9.0 5.0 102 229 127 2.4 33 3 M090823
4.0 11.8 5.0 102 300 127 2.6 35 3 M120598
5.0 10.0 5.0 127 254 127 2.3 31 3 M100213
3176 365 4.0 9.0 5.0 102 229 127 2.0 28 3 M090823
4.0 11.8 5.0 102 300 127 2.2 29 3 M120598
5.0 10.0 5.0 127 254 127 1.9 26 3 M100213
3176 275 to 300 4.0 9.0 5.0 102 229 127 1.6 21 3 M090823
