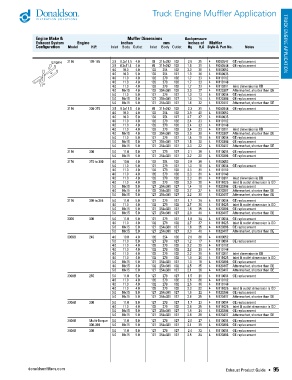

Page 97 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application

Engine Make & Muffler Dimensions Backpressure
Exhaust System Engine inches mm inches of Muffler TRUCK ENGINE APPLICATION
Configuration Model H.P. Inlet Body Outlet Inlet Body Outlet Hg H 2 0 Style & Part No. Notes

3116 170-185 3.5 8.3x11.5 4.0 89 211x292 102 2.6 35 4 M090547 OE replacement
3.5 8.3x11.5 4.0 89 211x292 102 1.6 21 4 M090548 OE replacement
4.0 10.0 4.0 102 254 102 2.0 28 4 M100052
4.0 10.0 5.0 102 254 127 1.9 26 4 M100635
4.0 11.0 4.0 102 279 102 1.7 23 4 M110112
4.0 11.0 4.0 102 279 102 1.7 23 4 M110148

4.0 11.0 4.0 102 279 102 1.7 23 4 M110311 Inlet dimension is OD
4.0 10x15 4.0 102 254x381 102 2.0 27 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 1.0 13 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.0 14 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 1.6 22 4 M120417 Aftermarket, shorter than OE
3116 220-275 3.5 8.3x11.5 4.0 89 211x292 102 2.3 31 4 M090548 OE replacement
4.0 10.0 4.0 102 254 102 2.9 40 4 M100052
4.0 10.0 5.0 102 254 127 2.7 37 4 M100635
4.0 11.0 4.0 102 279 102 2.4 33 4 M110112
4.0 11.0 4.0 102 279 102 2.4 33 4 M110148
4.0 11.0 4.0 102 279 102 2.4 33 4 M110311 Inlet dimension is OD
4.0 10x15 4.0 102 254x381 102 2.9 39 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 1.4 19 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.5 20 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.3 32 4 M120417 Aftermarket, shorter than OE
3116 300 5.0 11.0 5.0 127 279 127 2.1 28 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 2.2 30 4 M120366 OE replacement
3176 275 to 300 4.0 10.0 4.0 102 254 102 2.8 38 4 M100052
5.0 11.0 5.0 127 279 127 1.3 18 4 M110014 OE replacement
4.0 11.0 4.0 102 279 102 2.3 31 4 M110112
4.0 11.0 4.0 102 279 102 2.3 31 4 M110148
4.0 11.0 4.0 102 279 102 2.3 31 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 2.0 28 4 M111025 Inlet & outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.4 19 4 M120366 OE replacement
4.0 10x15 4.0 102 254x381 102 2.7 37 4 M120367 Aftermarket, shorter than OE
5.0 10x15 5.0 127 254x381 127 2.2 30 4 M120417 Aftermarket, shorter than OE
3176 350 to 365 5.0 11.0 5.0 127 279 127 1.7 24 4 M110014 OE replacement
4.0 11.0 4.0 102 279 102 2.7 36 4 M111025 Inlet & outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.8 25 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.9 40 4 M120417 Aftermarket, shorter than OE
3306 300 5.0 11.0 5.0 127 279 127 1.8 24 4 M110014 OE replacement
4.0 11.0 4.0 102 279 102 2.7 37 4 M111025 Inlet & outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.8 25 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 3.0 40 4 M120417 Aftermarket, shorter than OE
3306B 245 4.0 10.0 4.0 102 254 102 2.6 36 4 M100052
5.0 11.0 5.0 127 279 127 1.2 17 4 M110014 OE replacement
4.0 11.0 4.0 102 279 102 2.2 29 4 M110112
4.0 11.0 4.0 102 279 102 2.2 29 4 M110148
4.0 11.0 4.0 102 279 102 2.2 29 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 1.9 26 4 M111025 Inlet & outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.3 18 4 M120366 OE replacement
4.0 10x15 4.0 102 254x381 102 2.5 35 4 M120367 Aftermarket, shorter than OE
5.0 10x15 5.0 127 254x381 127 2.1 28 4 M120417 Aftermarket, shorter than OE
3306B 285 5.0 11.0 5.0 127 279 127 1.5 21 4 M110014 OE replacement
4.0 11.0 4.0 102 279 102 2.6 36 4 M110112
4.0 11.0 4.0 102 279 102 2.6 36 4 M110148
4.0 11.0 4.0 102 279 102 2.3 32 4 M111025 Inlet & outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.6 22 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.6 35 4 M120417 Aftermarket, shorter than OE
3306B 300 5.0 11.0 5.0 127 279 127 1.7 23 4 M110014 OE replacement
4.0 11.0 4.0 102 279 102 2.6 35 4 M111025 Inlet & outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.8 24 4 M120366 OE replacement
5.0 10x15 5.0 127 254x381 127 2.8 38 4 M120417 Aftermarket, shorter than OE
3406B Multi-Torque 5.0 11.0 5.0 127 279 127 2.0 27 4 M110014 OE replacement
300-310 5.0 10x15 5.0 127 254x381 127 2.1 29 4 M120366 OE replacement
3406B 330 5.0 11.0 5.0 127 279 127 2.4 32 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 2.5 34 4 M120366 OE replacement

donaldsonfilters.com Exhaust Product Guide • 95
