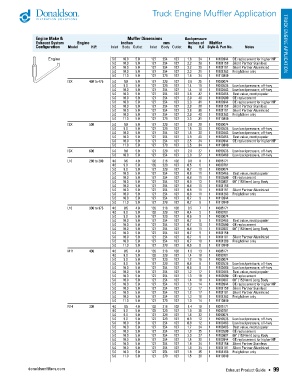

Page 101 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application

Engine Make & Muffler Dimensions Backpressure
Exhaust System Engine inches mm inches of Muffler TRUCK ENGINE APPLICATION
Configuration Model H.P. Inlet Body Outlet Inlet Body Outlet Hg H 2 0 Style & Part No. Notes

5.0 10.0 5.0 127 254 127 1.8 24 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.2 29 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.2 29 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.3 31 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.8 24 1 M110849
ISX 450 to 475 5.0 9.0 5.0 127 229 127 2.6 35 1 M090074
5.0 9.0 5.0 127 229 127 1.4 19 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.4 19 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.8 37 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.9 40 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.3 31 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.8 38 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.8 38 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.9 40 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.3 31 1 M110849
ISX 500 5.0 9.0 5.0 127 229 127 2.8 38 1 M090074
5.0 9.0 5.0 127 229 127 1.5 20 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.5 20 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.9 40 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.5 34 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.5 34 1 M110849
ISX 600 5.0 9.0 5.0 127 229 127 2.0 27 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.0 27 1 M100463 Low backpressure, off-hwy
L10 260 to 280 4.0 8.5 4.0 102 216 102 0.6 8 1 M085171
4.0 9.0 5.0 102 229 127 0.5 6 1 M090781
5.0 9.0 5.0 127 229 127 0.7 10 1 M090074
5.0 10.0 5.0 127 254 127 0.8 11 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 0.8 11 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 0.9 12 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 0.8 11 1 M101158
5.0 10.0 5.0 127 254 127 0.8 11 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 0.8 11 1 M101263 Freightliner only
5.0 10.0 5.0 127 254 127 0.7 9 1 M110944
5.0 11.0 5.0 127 279 127 0.7 9 1 M110849
L10 300 to 375 4.0 8.5 4.0 102 216 102 0.5 7 1 M085171
4.0 9.0 5.0 102 229 127 0.4 5 1 M090781
5.0 9.0 5.0 127 229 127 0.6 9 1 M090074
5.0 10.0 5.0 127 254 127 0.7 9 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 0.7 10 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 0.8 11 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 0.7 9 1 M101158
5.0 10.0 5.0 127 254 127 0.7 9 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 0.7 10 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 0.6 8 1 M110849
M11 400 4.0 8.5 4.0 102 216 102 1.0 13 1 M085171
4.0 9.0 5.0 102 229 127 1.4 19 1 M090781
5.0 9.0 5.0 127 229 127 1.2 16 1 M090074
5.0 9.0 5.0 127 229 127 0.6 8 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 0.6 8 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.2 17 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 1.3 18 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 1.4 19 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 1.0 14 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 1.2 17 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.2 17 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 1.3 18 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.0 14 1 M110849
N14 330 4.0 8.5 4.0 102 216 102 1.4 19 1 M085171
4.0 9.0 5.0 102 229 127 1.9 26 1 M090781
5.0 9.0 5.0 127 229 127 1.6 22 1 M090074
5.0 9.0 5.0 127 229 127 0.9 12 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 0.9 12 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.7 24 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 1.8 25 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.0 27 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 1.5 20 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 1.8 24 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.8 24 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 1.8 25 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.5 20 1 M110849

donaldsonfilters.com Exhaust Product Guide • 99
