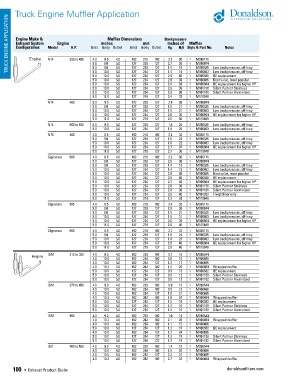

Truck Engine Muffler Application
TRUCK ENGINE APPLICATION Engine Make & Model Engine 350 to 435 Inlet Body Outlet Inlet Body Outlet Backpressure 1 M085171 Notes

Muffler Dimensions
inches of Muffler
mm
inches
Exhaust System
Configuration
Hg
H 2 0 Style & Part No.
H.P.

4.0
N14
102
2.2
30
216
8.5
4.0
102
9.0
19
5.0
229
M090535 Low backpressure, off-hwy
1.4
5.0
127
127
9.0
5.0
1.4
127
19
M100463 Low backpressure, off-hwy
254
5.0
127
1
254
5.0
127
10.0
127
1
M100580 OE replacement
40
5.0
5.0 10.0 5.0 127 229 127 2.7 36 1 1 M090074
2.9
5.0 10.0 5.0 127 254 127 2.8 39 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.4 32 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.9 39 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.9 39 1 M101181 Silent Partner Aluminized
5.0 11.0 5.0 127 279 127 2.4 32 1 M110849
N14 460 5.0 9.0 5.0 127 229 127 2.9 39 1 M090074
5.0 9.0 5.0 127 229 127 1.5 21 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.5 21 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.6 35 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.6 35 1 M110849
N14 500 to 550 5.0 9.0 5.0 127 229 127 1.8 25 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.8 25 1 M100463 Low backpressure, off-hwy
NTC 400 4.0 8.5 4.0 102 216 102 2.5 34 1 M085171
5.0 9.0 5.0 127 229 127 1.6 22 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.6 22 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.7 37 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.7 36 1 M110849
Signature 500 4.0 8.5 4.0 102 216 102 2.2 30 1 M085171
5.0 9.0 5.0 127 229 127 2.6 36 1 M090074
5.0 9.0 5.0 127 229 127 1.4 19 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.4 19 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.8 38 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.9 40 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.3 32 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.8 39 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.8 39 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.9 40 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.3 32 1 M110849
Signature 565 4.0 8.5 4.0 102 216 102 2.4 33 1 M085171
5.0 9.0 5.0 127 229 127 2.9 39 1 M090074
5.0 9.0 5.0 127 229 127 1.5 21 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.5 21 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.6 35 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.6 35 1 M110849
Signature 600 4.0 8.5 4.0 102 216 102 2.7 37 1 M085171
5.0 9.0 5.0 127 229 127 1.8 24 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.8 24 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.9 40 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.9 40 1 M110849
ISM 310 to 350 4.0 9.0 4.0 102 229 102 0.7 10 1 M090544
4.0 10.0 4.0 102 254 102 0.8 10 1 M100466
4.0 10.0 5.0 102 254 127 1.2 17 1 M100695
4.0 10.3 4.0 102 262 102 1.4 20 1 M100464 Wrapped muffler
5.0 10.0 5.0 127 254 127 0.9 13 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 0.9 13 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 0.9 13 1 M101182 Silent Partner Aluminized
ISM 370 to 450 4.0 9.0 4.0 102 229 102 0.9 12 1 M090544
4.0 10.0 4.0 102 254 102 0.9 13 1 M100466
4.0 10.0 5.0 102 254 127 1.5 21 1 M100695
4.0 10.3 4.0 102 262 102 1.8 24 1 M100464 Wrapped muffler
5.0 10.0 5.0 127 254 127 1.2 16 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.2 16 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.2 16 1 M101182 Silent Partner Aluminized
ISM 500 4.0 9.0 4.0 102 229 102 1.0 14 1 M090544
4.0 10.3 4.0 102 262 102 2.1 28 1 M100464 Wrapped muffler
4.0 10.0 4.0 102 254 102 1.1 15 1 M100466
5.0 10.0 5.0 127 254 127 1.3 18 1 M100582 OE replacement
4.0 10.0 5.0 102 254 127 1.7 24 1 M100695
5.0 10.0 5.0 127 254 127 1.3 18 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.3 18 1 M101182 Silent Partner Aluminized
ISX 400 to 500 4.0 9.0 4.0 102 229 102 1.4 19 1 M090544
4.0 10.0 4.0 102 254 102 1.5 20 1 M100466
4.0 10.0 5.0 102 254 127 2.3 31 1 M100695
4.0 10.3 4.0 102 262 102 2.7 37 1 M100464 Wrapped muffler
100 • Exhaust Product Guide donaldsonfilters.com
