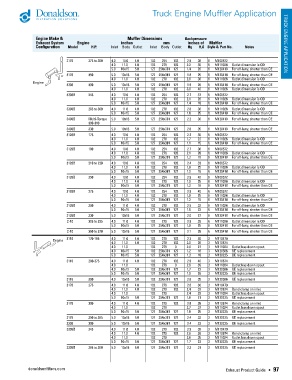

Page 99 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application

Engine Make & Muffler Dimensions Backpressure
Exhaust System Engine inches mm inches of Muffler TRUCK ENGINE APPLICATION
Configuration Model H.P. Inlet Body Outlet Inlet Body Outlet Hg H 2 0 Style & Part No. Notes

3176 275 to 300 4.0 10.0 4.0 102 254 102 2.9 39 6 M100572
4.0 11.0 4.0 102 279 102 2.2 30 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.4 20 6 M120418 For off-hwy, shorter than OE
3176 350 5.0 10x15 5.0 127 254x381 127 1.8 25 6 M120418 For off-hwy, shorter than OE
4.0 11.0 4.0 102 279 102 2.8 38 6 M111026 Outlet dimension is OD

3306 300 5.0 10x15 5.0 127 254x381 127 1.9 26 6 M120418 For off-hwy, shorter than OE
4.0 11.0 4.0 102 279 102 3.0 40 6 M111026 Outlet dimension is OD
3306B 245 4.0 10.0 4.0 102 254 102 2.7 37 6 M100572
4.0 11.0 4.0 102 279 102 2.1 28 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.4 18 6 M120418 For off-hwy, shorter than OE
3306B 285 to 300 4.0 11.0 4.0 102 279 102 2.8 38 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.8 25 6 M120418 For off-hwy, shorter than OE
3406B Multi-Torque 5.0 10x15 5.0 127 254x381 127 2.2 30 6 M120418 For off-hwy, shorter than OE
300-310
3406B 330 5.0 10x15 5.0 127 254x381 127 2.6 35 6 M120418 For off-hwy, shorter than OE
3126B 175 4.0 10.0 4.0 102 254 102 2.2 30 6 M100572
4.0 11.0 4.0 102 279 102 1.7 23 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.1 15 6 M120418 For off-hwy, shorter than OE
3126B 190 4.0 10.0 4.0 102 254 102 2.7 36 6 M100572
4.0 11.0 4.0 102 279 102 2.1 28 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.3 18 6 M120418 For off-hwy, shorter than OE
3126B 210 to 230 4.0 10.0 4.0 102 254 102 2.4 33 6 M100572
4.0 11.0 4.0 102 279 102 1.9 25 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.2 16 6 M120418 For off-hwy, shorter than OE
3126B 250 4.0 10.0 4.0 102 254 102 2.9 40 6 M100572
4.0 11.0 4.0 102 279 102 1.9 25 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.2 16 6 M120418 For off-hwy, shorter than OE
3126B 275 4.0 10.0 4.0 102 254 102 2.9 40 6 M100572
4.0 11.0 4.0 102 279 102 1.9 25 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.2 16 6 M120418 For off-hwy, shorter than OE
3126B 300 4.0 11.0 4.0 102 279 102 2.5 33 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.6 22 6 M120418 For off-hwy, shorter than OE
3126B 330 5.0 10x15 5.0 127 254x381 127 2.0 27 6 M120418 For off-hwy, shorter than OE
C-10 305 to 335 4.0 11.0 4.0 102 279 102 2.9 39 6 M111026 Outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.9 25 6 M120418 For off-hwy, shorter than OE
C-10 350 to 370 5.0 10x15 5.0 127 254x381 127 2.1 28 6 M120418 For off-hwy, shorter than OE
3116 170-185 4.0 11.0 4.0 102 279 102 2.2 30 3 M110479

4.0 11.0 4.0 102 279 102 2.0 28 3 M110674
4.0 11.0 102 279 0 2.0 27 3 M111024 Outlet has down spout
4.0 10x15 5.0 102 254x381 127 1.2 16 3 M120566 OE replacement
5.0 10x15 5.0 127 254x381 127 1.3 18 3 M120235 OE replacement
3116 200-275 4.0 11.0 4.0 102 279 102 2.9 40 3 M110674
4.0 11.0 102 279 0 2.9 39 3 M111024 Outlet has down spout
4.0 10x15 5.0 102 254x381 127 1.7 23 3 M120566 OE replacement
5.0 10x15 5.0 127 254x381 127 1.9 26 3 M120235 OE replacement
3116 300 4.0 10x15 5.0 102 254x381 127 2.6 35 3 M120566 OE replacement
3176 275 4.0 11.0 4.0 102 279 102 2.6 36 3 M110479
4.0 11.0 4.0 102 279 102 2.4 33 3 M110674 Band clamp on inlet
4.0 11.0 102 279 2.4 32 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 1.6 21 3 M120235 OE replacement
3176 300 4.0 11.0 4.0 102 279 102 2.8 38 3 M110674 Band clamp on inlet
4.0 11.0 102 279 2.7 37 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 1.8 25 3 M120235 OE replacement
3176 350 to 365 5.0 10x15 5.0 127 254x381 127 2.4 32 3 M120235 OE replacement
3306 300 5.0 10x15 5.0 127 254x381 127 2.4 33 3 M120235 OE replacement
3306B 245 4.0 11.0 4.0 102 279 102 2.9 39 3 M110479
4.0 11.0 4.0 102 279 102 2.6 36 3 M110674 Band clamp on inlet
4.0 11.0 102 279 2.6 35 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 1.7 23 3 M120235 OE replacement
3306B 285 to 300 5.0 10x15 5.0 127 254x381 127 2.3 31 3 M120235 OE replacement

donaldsonfilters.com Exhaust Product Guide • 97
