Page 192 - Hydra-matic 6 Speed RWD Technician's Guide (October 2005)
P. 192

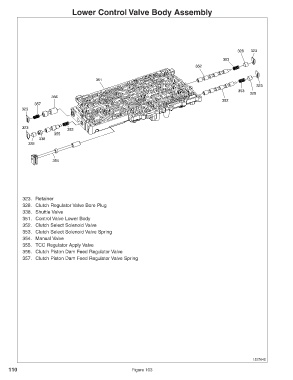

Lower Control Valve Body Assembly
328 323
353
352
351
323
353
328
356
352
357
323
323
353
355
338
328
354
323. Retainer
328. Clutch Regulator Valve Bore Plug
338. Shuttle Valve
351. Control Valve Lower Body
352. Clutch Select Solenoid Valve
353. Clutch Select Solenoid Valve Spring
354. Manual Valve
355. TCC Regulator Apply Valve
356. Clutch Piston Dam Feed Regulator Valve
357. Clutch Piston Dam Feed Regulator Valve Spring
1537645
110 Figure 103
