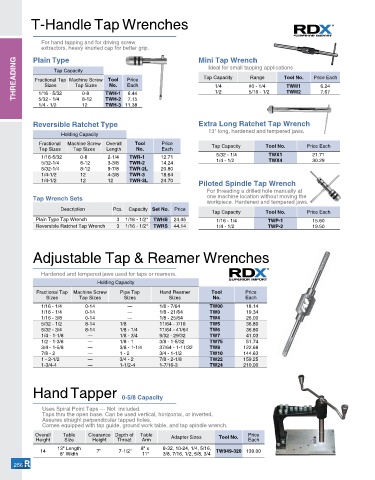

P. 258

T-Handle Tap Wrenches



               For hand tapping and for driving screw
               extractors, heavy knurled cap for better grip.     Mini Tap Wrench
            Plain Type
      THREADING  Fractional Tap Machine Screw  Tool   Price        Tap Capacity   #0 - 1/4    Tool No.  Price Each
                                                                      Ideal for small tapping applications
                   Tap Capacity
                                                                                   Range
                          Tap Sizes
                Sizes
                                           Each
                                     No.
                                                                                               TWM1
                                                                       1/4
                                                                                                          6.24
                                                                                               TWM2
                                                                                                          7.67
                                                                                  5/16 - 1/2
                                                                       1/2
              1/16 - 5/32
                            8-12
                                   TWH-2
                                           7.15
              5/32 - 1/4
                            12
              1/4 - 1/2     0-8    TWH-1   6.44
                                   TWH-3 11.38
            Reversible Ratchet Type                               Extra Long Ratchet Tap Wrench
                                                                      13" long, hardened and tempered jaws.
                     Holding Capacity
              Fractional  Machine Screw  Overall  Tool   Price                          Tool No.
              Tap Sizes  Tap Sizes  Length   No.      Each            Tap Capacity                   Price Each
               1/16-5/32   0-8      2-1/4  TWR-1      12.71             5/32 - 1/4       TWX1          21.71
               5/32-1/4    8-12     3-3/8  TWR-2      14.24             1/4 - 1/2        TWX4          30.29
               5/32-1/4    8-12     9-7/8  TWR-2L     20.80
               1/4-1/2     12       4-3/8  TWR-3      18.64
               1/4-1/2     12       12     TWR-3L     24.70
                                                                  Piloted Spindle Tap Wrench
                                                                     For threading a drilled hole manually at
            Tap Wrench Sets                                          one machine location without moving the
                                                                     workpiece. Hardened and tempered jaws.
                     Description      Pcs.  Capacity Set No.  Price
                                                                      Tap Capacity      Tool No.     Price Each
             Plain Type Tap Wrench     3  1/16 - 1/2"  TWHS  24.05      1/16 - 1/4      TWP-1          15.60
             Reversible Ratchet Tap Wrench  3  1/16 - 1/2"  TWRS  44.14  1/4 - 1/2      TWP-2          19.50
            Adjustable Tap & Reamer Wrenches
              Hardened and tempered jaws used for taps or reamers.
                                 Holding Capacity
             Fractional Tap  Machine Screw  Pipe Tap  Hand Reamer     Tool       Price
                Sizes      Tap Sizes     Sizes          Sizes         No.        Each
              1/16 - 1/4     0-14          —         1/8 - 7/64      TW00        18.14
              1/16 - 1/4     0-14          —         1/8 - 21/64     TW0         19.34
              1/16 - 3/8     0-14          —         1/8 - 25/64     TW4         26.00
              5/32 - 1/2     8-14       1/8          11/64 - 7/16    TW5         36.80
              5/32 - 3/4     8-14       1/8 - 1/4    11/64 - 41/64   TW6         36.80
              1/4 - 1-1/8     —         1/8 - 3/4    9/32 - 29/32    TW7         41.03
              1/2 - 1-3/8     —         1/8 - 1      3/8 - 1-5/32    TW75        51.74
              3/4 - 1-5/8     —         3/8 - 1-1/4  37/64 - 1-11/32  TW8       122.68
              7/8 - 2         —         1 - 2        3/4 - 1-1/2     TW10       144.63
              1 - 2-1/2       —         3/4 - 2      7/8 - 2-1/8     TW22       159.25
              1-3/4-4         —         1-1/2-4      1-7/16-3        TW24       210.00


            Hand Tapper                  0-5/8 Capacity



               Uses Spiral Point Taps — Not  included.
               Taps thru the open base. Can be used vertical, horizontal, or inverted.
               Assures straight perpendicular tapped holes.
               Comes equipped with tap guide, ground work table, and tap spindle wrench.
             Overall   Table   Clearance  Depth of   Table  Adapter Sizes  Tool No.  Price
             Height   Size     Height  Throat  Arm                                Each
                    13" Length                 8" x   8-32, 10-24, 1/4, 5/16,
              14                 7"     7-1/2"                          TW949-320 139.00
                     8" Width                  11"    3/8, 7/16, 1/2, 5/8, 3/4
