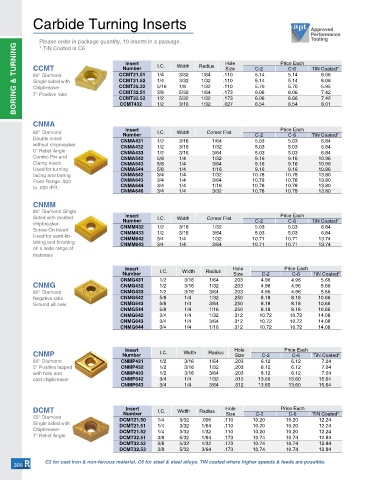

Carbide Turning Inserts

Please order in package quantity, 10 inserts in a package.
BORING & TURNING CCMT CCMT21.51 1/4 Width Radius .110 C-2 Price Each TiN Coated*
* TiN Coated is C6
Hole
Insert
I.C.
Size
Number
C-6
5.14
1/64
6.06
3/32
5.14
80° Diamond
CCMT21.52
6.06
5.14
1/4
.110
5.14
1/32
3/32
Single sided with
CCMT25.22
1/32
5.95
1/8
5.70
5/16
5.70
.110
Chipbreaker
6.06
6.06
3/8
.173
1/64
CCMT32.51
7.42
5/32
7° Positive rake
6.06
1/32
.173
1/2
5/32
CCMT32.52
7.42
6.06
CNMA CCMT432 1/2 3/16 1/32 .027 6.54 6.54 8.01
Insert
80° Diamond Number I.C. Width Corner Flat C-2 Price Each TiN Coated*
C-6
Double sided CNMA431 1/2 3/16 1/64 5.03 5.03 6.84
without chipbreaker CNMA432 1/2 3/16 1/32 5.03 5.03 6.84
0° Relief Angle CNMA433 1/2 3/16 3/64 5.03 5.03 6.84
Combo Pin and CNMA542 5/8 1/4 1/32 9.16 9.16 10.96
Clamp Insert CNMA543 5/8 1/4 3/64 9.16 9.16 10.96
Used for turning CNMA544 5/8 1/4 1/16 9.16 9.16 10.96
facing and boring CNMA642 3/4 1/4 1/32 10.78 10.78 13.80
Feed Range .003 CNMA643 3/4 1/4 3/64 10.78 10.78 13.80
to .020 IPR. CNMA644 3/4 1/4 1/16 10.78 10.78 13.80
CNMA646 3/4 1/4 3/32 10.78 10.78 13.80
CNMM
80° Diamond Single
Insert
Sided with molded Number I.C. Width Corner Flat Price Each
chipbreaker. CNMM432 1/2 3/16 1/32 C-2 C-6 TiN Coated*
5.03
5.03
6.84
Screw-On Insert CNMM433 1/2 3/16 3/64 5.03 5.03 6.84
Used for semi-fin- CNMM642 3/4 1/4 1/32 10.71 10.71 13.74
ishing and finishing CNMM643 3/4 1/4 3/64 10.71 10.71 13.74
on a wide range of
materials
Insert Hole Price Each
Number I.C. Width Radius Size C-2 C-6 TiN Coated*
CNMG431 1/2 3/16 1/64 .203 4.96 4.96 5.66
CNMG CNMG432 1/2 3/16 1/32 .203 4.96 4.96 5.66
80° Diamond CNMG433 1/2 3/16 3/64 .203 4.96 4.96 5.66
Negative rake CNMG542 5/8 1/4 1/32 .250 8.18 8.18 10.66
Ground all over CNMG543 5/8 1/4 3/64 .250 8.18 8.18 10.66
CNMG544 5/8 1/4 1/16 .250 8.18 8.18 10.66
CNMG642 3/4 1/4 1/32 .312 10.72 10.72 14.08
CNMG643 3/4 1/4 3/64 .312 10.72 10.72 14.08
CNMG644 3/4 1/4 1/16 .312 10.72 10.72 14.08
Insert
CNMP Number I.C. Width Radius Hole C-2 Price Each TiN Coated*
Size
C-6
80° DIamond CNMP431 1/2 3/16 1/64 .203 6.12 6.12 7.04
5° Positive lapped CNMP432 1/2 3/16 1/32 .203 6.12 6.12 7.04
with hole and CNMP433 1/2 3/16 3/64 .203 6.12 6.12 7.04
cast chipbreaker CNMP642 3/4 1/4 1/32 .312 13.60 13.60 15.64
CNMP643 3/4 1/4 3/64 .312 13.60 13.60 15.64
DCMT Number I.C. Width Radius Hole C-2 Price Each TiN Coated*
Insert
C-6
Size
55° Diamond DCMT21.50 1/4 3/32 .006 .110 10.20 10.20 12.24
Single sided with DCMT21.51 1/4 3/32 1/64 .110 10.20 10.20 12.24
Chipbreaker DCMT21.52 1/4 3/32 1/32 .110 10.20 10.20 12.24
7° Relief Angle DCMT32.51 3/8 5/32 1/64 .173 10.74 10.74 12.84
DCMT32.52 3/8 5/32 1/32 .173 10.74 10.74 12.84
DCMT32.53 3/8 5/32 3/64 .173 10.74 10.74 12.84
C2 for cast Iron & non-ferrous material. C6 for steel & steel alloys. TiN coated where higher speeds & feeds are possible.
398
