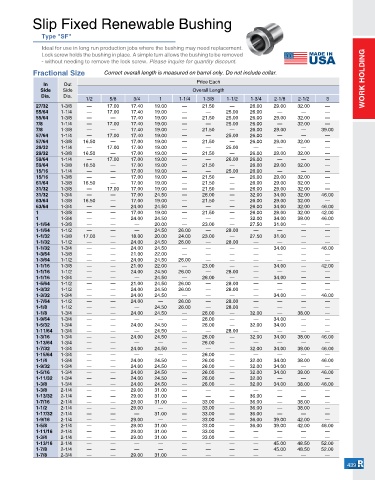

Page 441 - Republic Drill

Slip Fixed Renewable Bushing

Type "SF"
Ideal for use in long run production jobs where the bushing may need replacement.
Lock screw holds the bushing in place. A simple turn allows the bushing to be removed
- without needing to remove the lock screw. Please inquire for quantity discount.
Fractional Size Correct overall length is measured on barrel only. Do not include collar.
Price Each BORING & TURNING WORK HOLDING
In Out
Side Side Overall Length
Dia. Dia.
1/2 5/8 3/4 1 1-1/4 1-3/8 1-1/2 1-3/4 2-1/8 2-1/2 3
27/32 1-3/8 — 17.00 17.40 19.00 — 21.50 — 26.00 29.00 32.00 —
55/64 1-1/4 — 17.00 17.40 19.00 — — 25.00 26.00 — — —
55/64 1-3/8 — — 17.40 19.00 — 21.50 25.00 26.00 29.00 32.00 —
7/8 1-1/4 — 17.00 17.40 19.00 — — 25.00 26.00 — 32.00 —
7/8 1-3/8 — — 17.40 19.00 — 21.50 — 26.00 29.00 — 39.00
57/64 1-1/4 — 17.00 17.40 19.00 — — 25.00 26.00 — — —
57/64 1-3/8 16.50 — 17.00 19.00 — 21.50 — 26.00 29.00 32.00 —
29/32 1-1/4 — 17.00 17.00 19.00 — — 25.00 — — — —
29/32 1-3/8 16.50 — 17.00 19.00 — 21.50 — 26.00 29.00 32.00 —
59/64 1-1/4 — 17.00 17.00 19.00 — — 26.00 26.00 — — —
59/64 1-3/8 16.50 — 17.00 19.00 — 21.50 — 26.00 29.00 32.00 —
15/16 1-1/4 — — 17.00 19.00 — — 25.00 26.00 — — —
15/16 1-3/8 — — 17.00 19.00 — 21.50 — 26.00 29.00 32.00 —
61/64 1-3/8 16.50 — 17.00 19.00 — 21.50 — 26.00 29.00 32.00 —
31/32 1-3/8 — 17.00 17.00 19.00 — 21.50 — 26.00 29.00 32.00 —
31/32 1-3/4 — — 17.00 24.50 — 26.00 — 32.00 34.00 32.00 46.00
63/64 1-3/8 16.50 — 17.00 19.00 — 21.50 — 26.00 29.00 32.00 —
63/64 1-3/4 — — 24.00 24.50 — — — 26.00 34.00 32.00 46.00
1 1-3/8 — — 17.00 19.00 — 21.50 — 26.00 29.00 32.00 42.00
1 1-3/4 — — 24.00 24.50 — — — 32.00 34.00 38.00 46.00
1-1/64 1-3/8 — — — 20.00 — 23.00 — 27.50 31.00 — —
1-1/64 1-1/2 — — — 24.50 26.00 — 28.00 — — — —
1-1/32 1-3/8 17.00 — 18.00 20.00 24.00 23.00 — 27.50 31.00 — —
1-1/32 1-1/2 — — 24.00 24.50 26.00 — 28.00 — — — —
1-1/32 1-3/4 — — 24.00 24.50 — — — — 34.00 — 46.00
1-3/64 1-3/8 — — 21.00 22.00 — — — — — — —
1-3/64 1-1/2 — — 24.00 24.50 26.00 — — — — — —
1-1/16 1-3/8 — — 21.00 22.00 — 23.00 — — 34.00 — 42.00
1-1/16 1-1/2 — — 24.00 24.50 26.00 — 28.00 — — — —
1-1/16 1-3/4 — — — 24.50 — 26.00 — — 34.00 — —
1-5/64 1-1/2 — — 21.00 24.50 26.00 — 28.00 — — — —
1-3/32 1-1/2 — — 24.00 24.50 26.00 — 28.00 — — — —
1-3/32 1-3/4 — — 24.00 24.50 — — — — 34.00 — 46.00
1-7/64 1-1/2 — — 24.00 — 26.00 — 28.00 — — — —
1-1/8 1-1/2 — — — 24.50 26.00 — 28.00 — — — —
1-1/8 1-3/4 — — 24.00 24.50 — 26.00 — 32.00 — 38.00 —
1-9/64 1-3/4 — — — — — 26.00 — — 34.00 — —
1-5/32 1-3/4 — — 24.00 24.50 — 26.00 — 32.00 34.00 — —
1-11/64 1-3/4 — — — 24.50 — — 28.00 — — — —
1-3/16 1-3/4 — — 24.00 24.50 — 26.00 — 32.00 34.00 38.00 46.00
1-13/64 1-3/4 — — — — — 26.00 — — — — —
1-7/32 1-3/4 — — 24.00 24.50 — — — 32.00 34.00 38.00 46.00
1-15/64 1-3/4 — — — — — 26.00 — — — — —
1-1/4 1-3/4 — — 24.00 24.50 — 26.00 — 32.00 34.00 38.00 46.00
1-9/32 1-3/4 — — 24.00 24.50 — 26.00 — 32.00 34.00 — —
1-5/16 1-3/4 — — 24.00 24.50 — 26.00 — 32.00 34.00 38.00 46.00
1-11/32 1-3/4 — — 24.00 24.50 — 26.00 — 32.00 — — —
1-3/8 1-3/4 — — 24.00 24.50 — 26.00 — 32.00 34.00 38.00 46.00
1-3/8 2-1/4 — — 29.00 31.00 — — — — — — —
1-13/32 2-1/4 — — 29.00 31.00 — — — 36.00 — — —
1-7/16 2-1/4 — — 29.00 31.00 — 33.00 — 36.00 — 38.00 —
1-1/2 2-1/4 — — 29.00 — — 33.00 — 36.00 — 38.00 —
1-17/32 2-1/4 — — — 31.00 — 33.00 — 36.00 — — —
1-9/16 2-1/4 — — 29.00 — — 33.00 — 36.00 39.00 42.00 —
1-5/8 2-1/4 — — 29.00 31.00 — 33.00 — 36.00 39.00 42.00 46.00
1-11/16 2-1/4 — — 29.00 31.00 — 33.00 — — — — —
1-3/4 2-1/4 — — 29.00 31.00 — 33.00 — — — — —
1-13/16 2-1/4 — — — — — — — — 45.00 48.50 52.00
1-7/8 2-1/4 — — — — — — — — 45.00 48.50 52.00
1-7/8 2-3/4 — — 29.00 31.00 — — — — — — —
