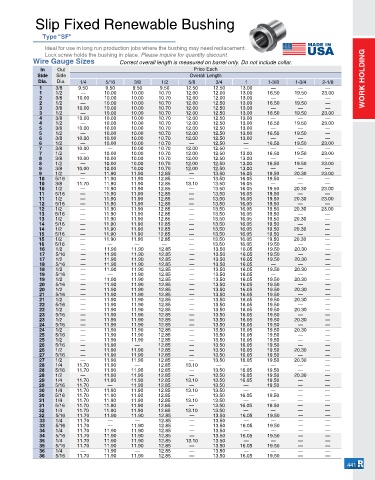

Page 443 - Republic Drill

Slip Fixed Renewable Bushing

Type "SF"
Ideal for use in long run production jobs where the bushing may need replacement.
Lock screw holds the bushing in place. Please inquire for quantity discount.
Wire Gauge Sizes Correct overall length is measured on barrel only. Do not include collar.
In Out Price Each
Side Side Overall Length
Dia. Dia. 1/4 5/16 3/8 1/2 5/8 3/4 1 BORING & TURNING 1-3/8 1-3/4 2-1/8 WORK HOLDING
1 3/8 9.50 9.50 9.50 9.50 12.50 12.50 13.00 — — —
1 1/2 — 10.00 10.00 10.70 12.00 12.00 13.00 16.50 19.50 23.00
2 3/8 10.00 10.00 10.00 10.70 12.00 12.00 13.00 — — —
2 1/2 — 10.00 10.00 10.70 12.00 12.50 13.00 16.50 19.50 —
3 3/8 10.00 10.00 10.00 10.70 12.00 12.50 13.00 — — —
3 1/2 — 10.00 10.00 10.70 12.00 12.50 13.00 16.50 19.50 23.00
4 3/8 10.00 10.00 10.00 10.70 12.00 12.50 13.00 — — —
4 1/2 — 10.00 10.00 10.70 12.00 12.50 13.00 16.50 19.50 23.00
5 3/8 10.00 10.00 10.00 10.70 12.00 12.50 13.00 — — —
5 1/2 — 10.00 10.00 10.70 12.00 12.50 13.00 16.50 19.50 —
6 3/8 10.00 10.00 10.00 10.70 12.00 12.50 13.00 — — —
6 1/2 — 10.00 10.00 10.70 — 12.50 — 16.50 19.50 23.00
7 3/8 10.00 — 10.00 10.70 12.00 12.50 — — — —
7 1/2 — 10.00 10.00 10.70 12.00 12.50 13.00 16.50 19.50 23.00
8 3/8 10.00 10.00 10.00 10.70 12.00 12.50 13.00 — — —
8 1/2 — 10.00 10.00 10.70 12.00 12.50 13.00 16.50 19.50 23.00
9 3/8 10.00 10.00 10.00 10.70 12.00 12.50 13.00 — — —
9 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 23.00
10 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
10 3/8 11.70 11.90 11.90 12.85 13.10 13.50 16.05 — — —
10 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 23.00
11 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
11 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 23.00
12 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
12 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 23.00
13 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
13 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
14 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
14 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
15 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
15 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
16 5/16 — — — — — 13.50 16.05 19.50 — —
16 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
17 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
17 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
18 5/16 — 11.90 11.90 12.85 — 13.50 16.05 — — —
18 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
19 5/16 — — 11.90 12.85 — 13.50 16.05 — — —
19 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
20 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
20 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
21 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
21 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
22 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
22 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
23 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
23 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
24 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
24 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
25 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
25 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
26 5/16 — 11.90 — 12.85 — 13.50 16.05 19.50 — —
26 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
27 5/16 — 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
27 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
28 1/4 11.70 11.90 — 12.85 13.10 — — — — —
28 5/16 11.70 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
28 1/2 — 11.90 11.90 12.85 — 13.50 16.05 19.50 20.30 —
29 1/4 11.70 11.90 11.90 12.85 13.10 13.50 16.05 19.50 — —
29 5/16 11.70 — 11.90 12.85 — 13.50 — 19.50 — —
30 1/4 11.70 11.90 11.90 12.85 13.10 13.50 — — — —
30 5/16 11.70 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
31 1/4 11.70 11.90 11.90 12.85 13.10 13.50 — — — —
31 5/16 11.70 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
32 1/4 11.70 11.90 11.90 12.85 13.10 13.50 — — — —
32 5/16 11.70 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
33 1/4 11.70 — — 12.85 — 13.50 — — — —
33 5/16 11.70 — 11.90 12.85 — 13.50 16.05 19.50 — —
34 1/4 11.70 11.90 11.90 12.85 — 13.50 — — — —
34 5/16 11.70 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
35 1/4 11.70 11.90 11.90 12.85 13.10 13.50 — — — —
35 5/16 11.70 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
36 1/4 — 11.90 — 12.85 — 13.50 — — — —
36 5/16 11.70 11.90 11.90 12.85 — 13.50 16.05 19.50 — —
