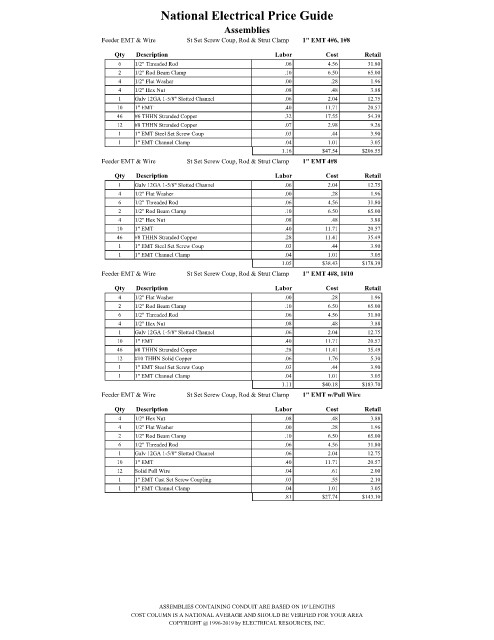

Page 1915 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1" EMT 4#6, 1#8
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 1" EMT .40 11.71 20.57
46 #6 THHN Stranded Copper .32 17.55 54.39
12 #8 THHN Stranded Copper .07 2.98 9.26
1 1" EMT Steel Set Screw Coup .03 .44 3.90
1 1" EMT Channel Clamp .04 1.01 3.05
1.16 $47.54 $206.55
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1" EMT 4#8

Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
10 1" EMT .40 11.71 20.57
46 #8 THHN Stranded Copper .28 11.41 35.49
1 1" EMT Steel Set Screw Coup .03 .44 3.90
1 1" EMT Channel Clamp .04 1.01 3.05
1.05 $38.43 $178.39
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1" EMT 4#8, 1#10
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 1" EMT .40 11.71 20.57
46 #8 THHN Stranded Copper .28 11.41 35.49
12 #10 THHN Solid Copper .06 1.76 5.30
1 1" EMT Steel Set Screw Coup .03 .44 3.90
1 1" EMT Channel Clamp .04 1.01 3.05
1.11 $40.18 $183.70
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1" EMT w/Pull Wire

Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 1" EMT .40 11.71 20.57
12 Solid Pull Wire .04 .61 2.00
1 1" EMT Cast Set Screw Coupling .03 .55 2.10
1 1" EMT Channel Clamp .04 1.01 3.05
.81 $27.74 $143.10

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
