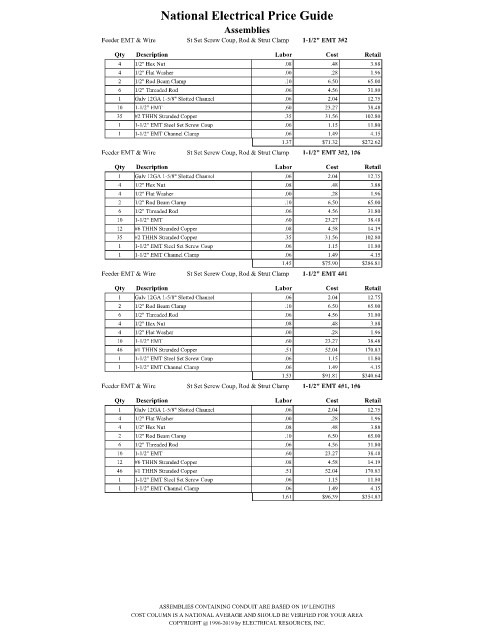

Page 1917 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1-1/2" EMT 3#2
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 1-1/2" EMT .60 23.27 38.48
35 #2 THHN Stranded Copper .35 31.56 102.80
1 1-1/2" EMT Steel Set Screw Coup .06 1.15 11.80
1 1-1/2" EMT Channel Clamp .06 1.49 4.15
1.37 $71.32 $272.62
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1-1/2" EMT 3#2, 1#6
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.58 14.19
35 #2 THHN Stranded Copper .35 31.56 102.80
1 1-1/2" EMT Steel Set Screw Coup .06 1.15 11.80
1 1-1/2" EMT Channel Clamp .06 1.49 4.15
1.45 $75.90 $286.81
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1-1/2" EMT 4#1
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
10 1-1/2" EMT .60 23.27 38.48
46 #1 THHN Stranded Copper .51 52.04 170.83
1 1-1/2" EMT Steel Set Screw Coup .06 1.15 11.80
1 1-1/2" EMT Channel Clamp .06 1.49 4.15
1.53 $91.81 $340.64
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1-1/2" EMT 4#1, 1#6
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.58 14.19
46 #1 THHN Stranded Copper .51 52.04 170.83
1 1-1/2" EMT Steel Set Screw Coup .06 1.15 11.80
1 1-1/2" EMT Channel Clamp .06 1.49 4.15
1.61 $96.39 $354.83

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
