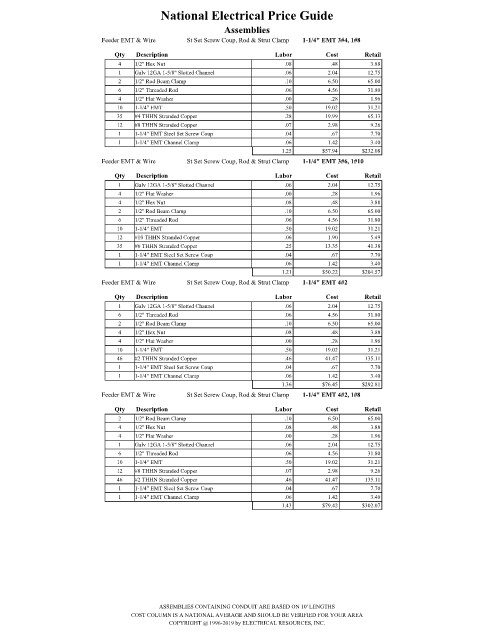

Page 1921 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1-1/4" EMT 3#4, 1#8
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
10 1-1/4" EMT .50 19.02 31.21
35 #4 THHN Stranded Copper .28 19.99 65.13
12 #8 THHN Stranded Copper .07 2.98 9.26
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT Channel Clamp .06 1.42 3.40
1.25 $57.94 $232.08
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1-1/4" EMT 3#6, 1#10

Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 1-1/4" EMT .50 19.02 31.21
12 #10 THHN Stranded Copper .06 1.90 5.49
35 #6 THHN Stranded Copper .25 13.35 41.38
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT Channel Clamp .06 1.42 3.40
1.21 $50.22 $204.57
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1-1/4" EMT 4#2
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
10 1-1/4" EMT .50 19.02 31.21
46 #2 THHN Stranded Copper .46 41.47 135.11
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT Channel Clamp .06 1.42 3.40
1.36 $76.45 $292.81
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 1-1/4" EMT 4#2, 1#8

Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.98 9.26
46 #2 THHN Stranded Copper .46 41.47 135.11
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT Channel Clamp .06 1.42 3.40
1.43 $79.42 $302.07

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
