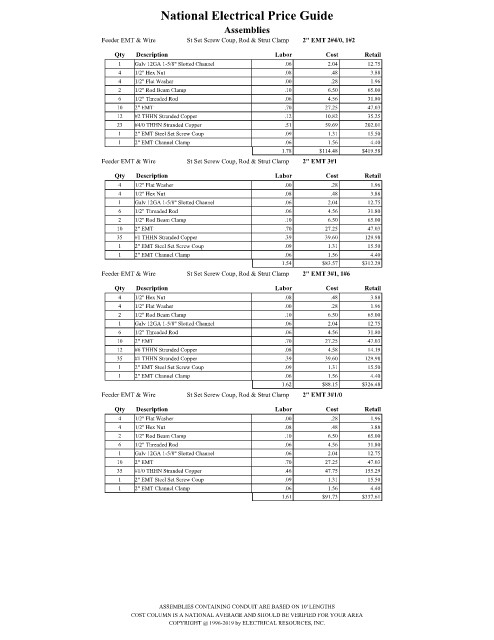

Page 1924 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 2#4/0, 1#2
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 2" EMT .70 27.25 47.03
12 #2 THHN Stranded Copper .12 10.82 35.25
23 #4/0 THHN Stranded Copper .51 59.69 202.01
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.78 $114.48 $419.58
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 3#1

Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 2" EMT .70 27.25 47.03
35 #1 THHN Stranded Copper .39 39.60 129.98
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.54 $83.57 $312.29
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 3#1, 1#6
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.58 14.19
35 #1 THHN Stranded Copper .39 39.60 129.98
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.62 $88.15 $326.48
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 3#1/0

Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2" EMT .70 27.25 47.03
35 #1/0 THHN Stranded Copper .46 47.75 155.29
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.61 $91.73 $337.61

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
