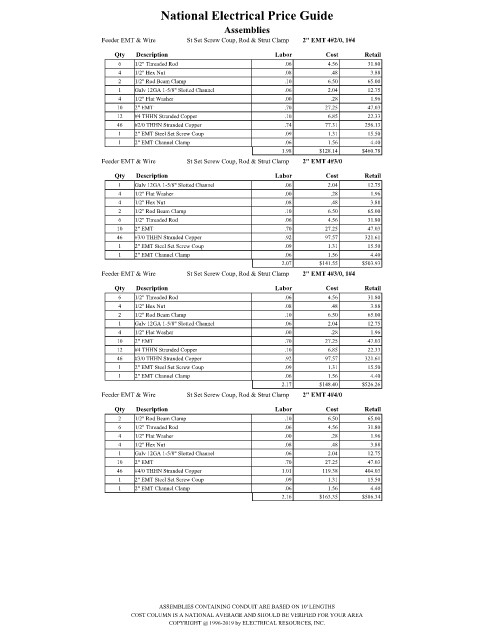

Page 1928 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#2/0, 1#4
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.85 22.33
46 #2/0 THHN Stranded Copper .74 77.31 256.13
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.98 $128.14 $460.78
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#3/0

Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 97.57 321.61
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
2.07 $141.55 $503.93
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#3/0, 1#4
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.85 22.33
46 #3/0 THHN Stranded Copper .92 97.57 321.61
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
2.17 $148.40 $526.26
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#4/0

Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2" EMT .70 27.25 47.03
46 #4/0 THHN Stranded Copper 1.01 119.38 404.03
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
2.16 $163.35 $586.34

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
