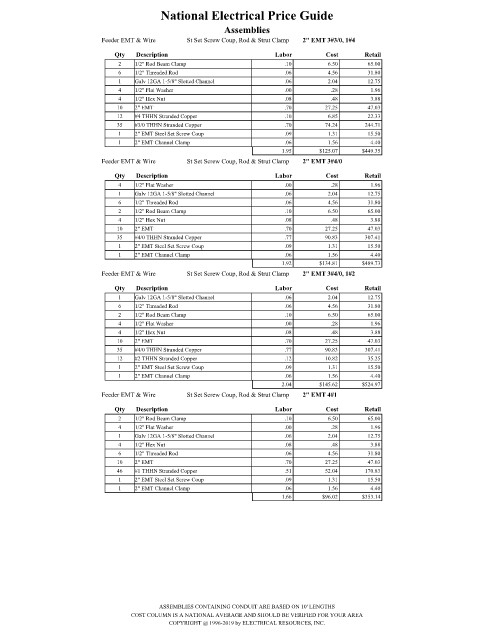

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 3#3/0, 1#4
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.85 22.33
35 #3/0 THHN Stranded Copper .70 74.24 244.71
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.95 $125.07 $449.35
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 3#4/0

Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 90.83 307.41
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.92 $134.81 $489.73
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 3#4/0, 1#2
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 90.83 307.41
12 #2 THHN Stranded Copper .12 10.82 35.25
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
2.04 $145.62 $524.97
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#1

Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
10 2" EMT .70 27.25 47.03
46 #1 THHN Stranded Copper .51 52.04 170.83
1 2" EMT Steel Set Screw Coup .09 1.31 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.66 $96.02 $353.14

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
