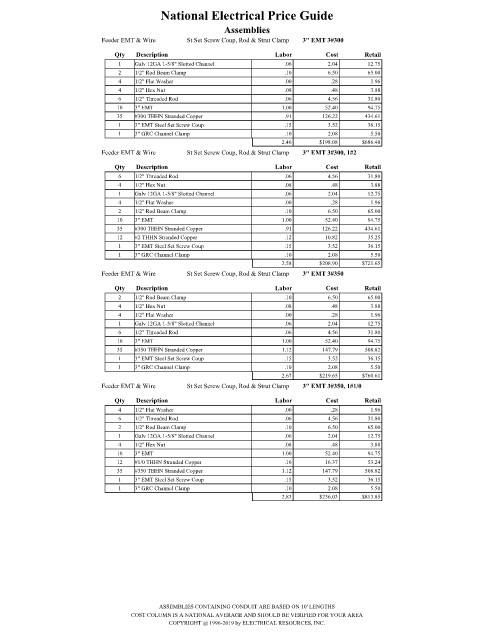

Page 1934 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 3#300
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
10 3" EMT 1.00 52.40 94.75
35 #300 THHN Stranded Copper .91 126.22 434.61
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
2.46 $198.08 $686.40
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 3#300, 1#2
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 3" EMT 1.00 52.40 94.75
35 #300 THHN Stranded Copper .91 126.22 434.61
12 #2 THHN Stranded Copper .12 10.82 35.25
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
2.58 $208.90 $721.65
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 3#350
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
10 3" EMT 1.00 52.40 94.75
35 #350 THHN Stranded Copper 1.12 147.79 508.82
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
2.67 $219.65 $760.61
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 3#350, 1#1/0
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.37 53.24
35 #350 THHN Stranded Copper 1.12 147.79 508.82
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
2.83 $236.03 $813.85

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
