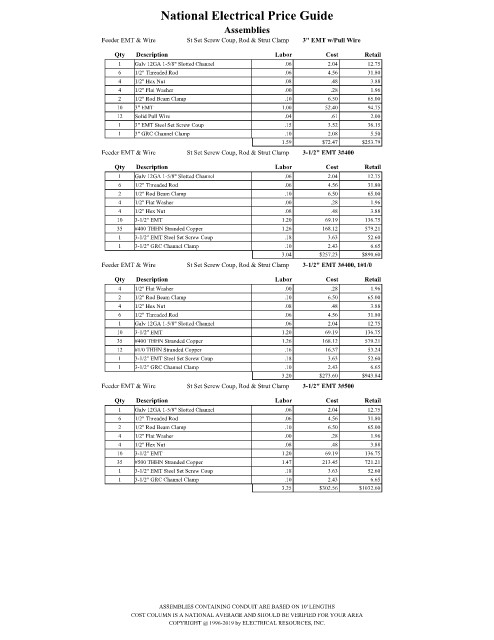

Page 1939 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 3" EMT 1.00 52.40 94.75
12 Solid Pull Wire .04 .61 2.00
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
1.59 $72.47 $253.79
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3-1/2" EMT 3#400
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 168.12 579.21
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.04 $257.23 $890.60
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3-1/2" EMT 3#400, 1#1/0

Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 168.12 579.21
12 #1/0 THHN Stranded Copper .16 16.37 53.24
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.20 $273.60 $943.84
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3-1/2" EMT 3#500
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 3-1/2" EMT 1.20 69.19 136.75
35 #500 THHN Stranded Copper 1.47 213.45 721.21
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.25 $302.56 $1032.60

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
