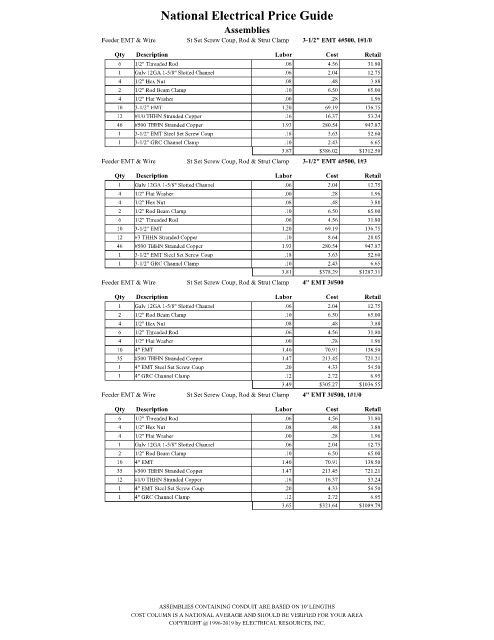

Page 1941 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3-1/2" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.37 53.24
46 #500 THHN Stranded Copper 1.93 280.54 947.87
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.87 $386.02 $1312.50
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3-1/2" EMT 4#500, 1#3

Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 3-1/2" EMT 1.20 69.19 136.75
12 #3 THHN Stranded Copper .10 8.64 28.05
46 #500 THHN Stranded Copper 1.93 280.54 947.87
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.81 $378.29 $1287.31
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 4" EMT 3#500
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.45 721.21
1 4" EMT Steel Set Screw Coup .20 4.33 54.50
1 4" GRC Channel Clamp .12 2.72 6.95
3.49 $305.27 $1036.55
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 4" EMT 3#500, 1#1/0

Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.45 721.21
12 #1/0 THHN Stranded Copper .16 16.37 53.24
1 4" EMT Steel Set Screw Coup .20 4.33 54.50
1 4" GRC Channel Clamp .12 2.72 6.95
3.65 $321.64 $1089.79

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
