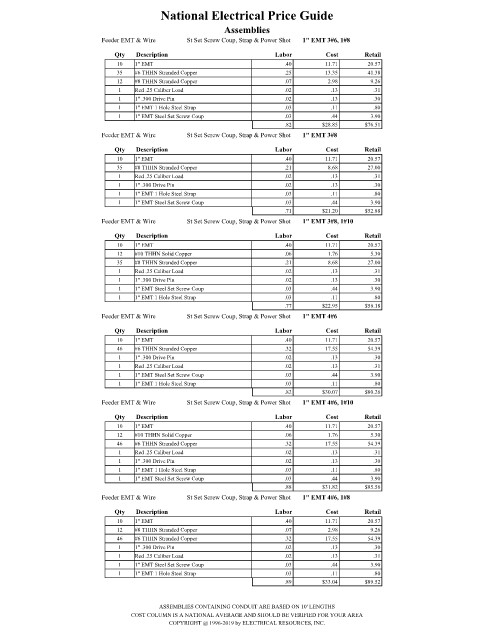

Page 1946 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 3#6, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #6 THHN Stranded Copper .25 13.35 41.38
12 #8 THHN Stranded Copper .07 2.98 9.26
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1" EMT 1 Hole Steel Strap .03 .11 .80
1 1" EMT Steel Set Screw Coup .03 .44 3.90
.82 $28.85 $76.51
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 3#8

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #8 THHN Stranded Copper .21 8.68 27.00
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1" EMT 1 Hole Steel Strap .03 .11 .80
1 1" EMT Steel Set Screw Coup .03 .44 3.90
.71 $21.20 $52.88
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 3#8, 1#10
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.76 5.30
35 #8 THHN Stranded Copper .21 8.68 27.00
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1" EMT Steel Set Screw Coup .03 .44 3.90
1 1" EMT 1 Hole Steel Strap .03 .11 .80
.77 $22.95 $58.18
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 4#6

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
46 #6 THHN Stranded Copper .32 17.55 54.39
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1" EMT Steel Set Screw Coup .03 .44 3.90
1 1" EMT 1 Hole Steel Strap .03 .11 .80
.82 $30.07 $80.26
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 4#6, 1#10
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.76 5.30
46 #6 THHN Stranded Copper .32 17.55 54.39
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1" EMT 1 Hole Steel Strap .03 .11 .80
1 1" EMT Steel Set Screw Coup .03 .44 3.90
.88 $31.82 $85.56
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 4#6, 1#8

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #8 THHN Stranded Copper .07 2.98 9.26
46 #6 THHN Stranded Copper .32 17.55 54.39
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1" EMT Steel Set Screw Coup .03 .44 3.90
1 1" EMT 1 Hole Steel Strap .03 .11 .80
.89 $33.04 $89.52

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
