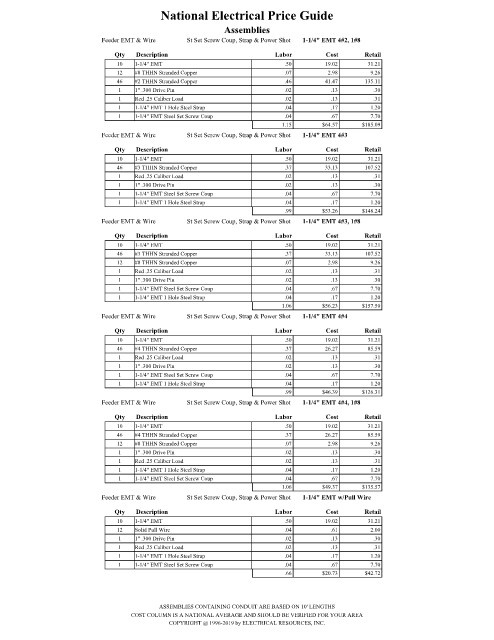

Page 1951 - National Electrical Price Guide
P. 1951
National Electrical Price Guide
Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 4#2, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.98 9.26
46 #2 THHN Stranded Copper .46 41.47 135.11
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1.15 $64.57 $185.09
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 4#3
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
46 #3 THHN Stranded Copper .37 33.13 107.52
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
.99 $53.26 $148.24
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 4#3, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
46 #3 THHN Stranded Copper .37 33.13 107.52
12 #8 THHN Stranded Copper .07 2.98 9.26
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
1.06 $56.23 $157.50
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 4#4
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
46 #4 THHN Stranded Copper .37 26.27 85.59
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
.99 $46.39 $126.31
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 4#4, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
46 #4 THHN Stranded Copper .37 26.27 85.59
12 #8 THHN Stranded Copper .07 2.98 9.26
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1.06 $49.37 $135.57
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
.66 $20.73 $42.72
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
