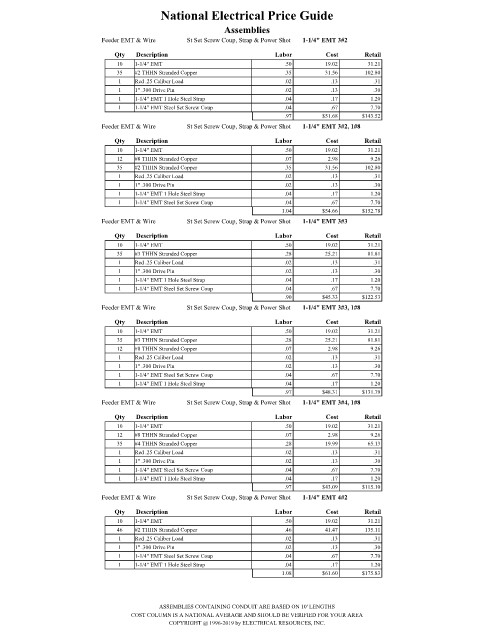

Page 1950 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 3#2
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #2 THHN Stranded Copper .35 31.56 102.80
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
.97 $51.68 $143.52
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 3#2, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.98 9.26
35 #2 THHN Stranded Copper .35 31.56 102.80
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1.04 $54.66 $152.78
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 3#3
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #3 THHN Stranded Copper .28 25.21 81.81
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
.90 $45.33 $122.53
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 3#3, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #3 THHN Stranded Copper .28 25.21 81.81
12 #8 THHN Stranded Copper .07 2.98 9.26
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
.97 $48.31 $131.79
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 3#4, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.98 9.26
35 #4 THHN Stranded Copper .28 19.99 65.13
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
.97 $43.09 $115.10
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/4" EMT 4#2

Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
46 #2 THHN Stranded Copper .46 41.47 135.11
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1-1/4" EMT Steel Set Screw Coup .04 .67 7.70
1 1-1/4" EMT 1 Hole Steel Strap .04 .17 1.20
1.08 $61.60 $175.83

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
