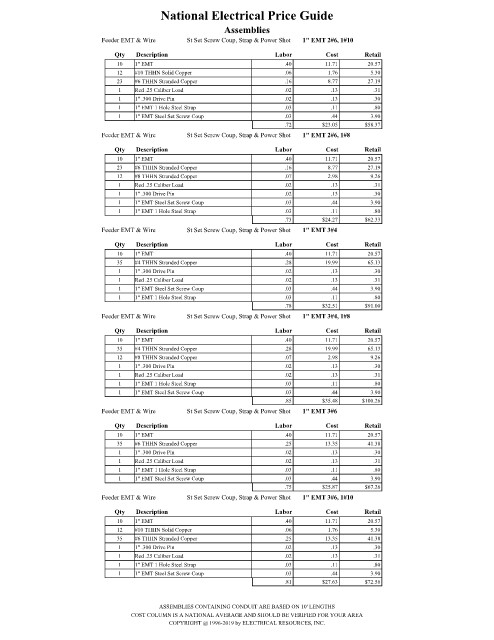

Page 1945 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 2#6, 1#10
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.76 5.30
23 #6 THHN Stranded Copper .16 8.77 27.19
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1" EMT 1 Hole Steel Strap .03 .11 .80
1 1" EMT Steel Set Screw Coup .03 .44 3.90
.72 $23.05 $58.37
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 2#6, 1#8

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
23 #6 THHN Stranded Copper .16 8.77 27.19
12 #8 THHN Stranded Copper .07 2.98 9.26
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 1" EMT Steel Set Screw Coup .03 .44 3.90
1 1" EMT 1 Hole Steel Strap .03 .11 .80
.73 $24.27 $62.33
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 3#4
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #4 THHN Stranded Copper .28 19.99 65.13
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1" EMT Steel Set Screw Coup .03 .44 3.90
1 1" EMT 1 Hole Steel Strap .03 .11 .80
.78 $32.51 $91.00
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 3#4, 1#8

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #4 THHN Stranded Copper .28 19.99 65.13
12 #8 THHN Stranded Copper .07 2.98 9.26
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1" EMT 1 Hole Steel Strap .03 .11 .80
1 1" EMT Steel Set Screw Coup .03 .44 3.90
.85 $35.48 $100.26
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 3#6
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #6 THHN Stranded Copper .25 13.35 41.38
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1" EMT 1 Hole Steel Strap .03 .11 .80
1 1" EMT Steel Set Screw Coup .03 .44 3.90
.75 $25.87 $67.26
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 3#6, 1#10

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.76 5.30
35 #6 THHN Stranded Copper .25 13.35 41.38
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 1" EMT 1 Hole Steel Strap .03 .11 .80
1 1" EMT Steel Set Screw Coup .03 .44 3.90
.81 $27.63 $72.56

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
