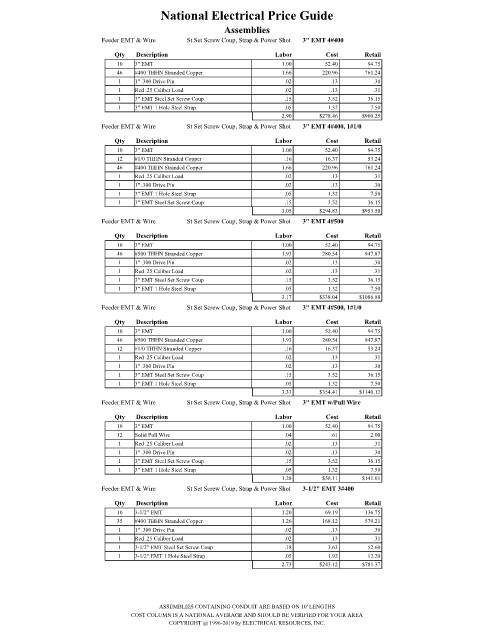

Page 1961 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#400
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #400 THHN Stranded Copper 1.66 220.96 761.24
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
2.90 $278.46 $900.25
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#400, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.37 53.24
46 #400 THHN Stranded Copper 1.66 220.96 761.24
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
3.05 $294.83 $953.50
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#500
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 280.54 947.87
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
3.17 $338.04 $1086.88
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 280.54 947.87
12 #1/0 THHN Stranded Copper .16 16.37 53.24
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
3.33 $354.41 $1140.12
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3" EMT Steel Set Screw Coup .15 3.52 36.15
1 3" EMT 1 Hole Steel Strap .05 1.32 7.50
1.28 $58.11 $141.01
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT 3#400
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 168.12 579.21
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" EMT 1 Hole Steel Strap .05 1.92 12.20
2.73 $243.12 $781.37

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
