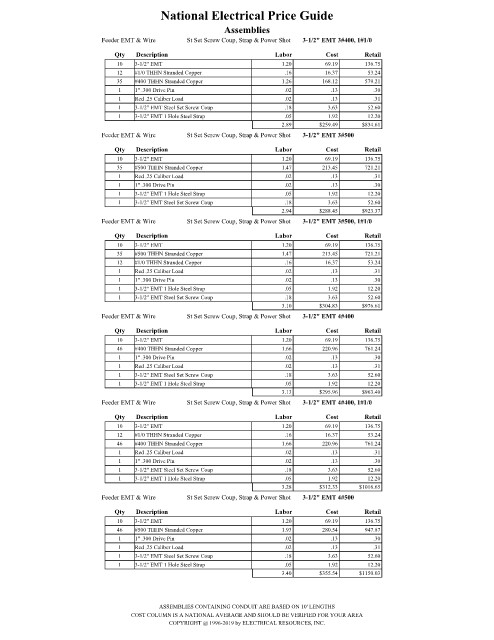

Page 1962 - National Electrical Price Guide
P. 1962
National Electrical Price Guide
Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT 3#400, 1#1/0
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.37 53.24
35 #400 THHN Stranded Copper 1.26 168.12 579.21
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" EMT 1 Hole Steel Strap .05 1.92 12.20
2.89 $259.49 $834.61
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT 3#500
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #500 THHN Stranded Copper 1.47 213.45 721.21
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3-1/2" EMT 1 Hole Steel Strap .05 1.92 12.20
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
2.94 $288.45 $923.37
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #500 THHN Stranded Copper 1.47 213.45 721.21
12 #1/0 THHN Stranded Copper .16 16.37 53.24
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3-1/2" EMT 1 Hole Steel Strap .05 1.92 12.20
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
3.10 $304.83 $976.61
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT 4#400
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
46 #400 THHN Stranded Copper 1.66 220.96 761.24
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" EMT 1 Hole Steel Strap .05 1.92 12.20
3.13 $295.96 $963.40
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT 4#400, 1#1/0
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.37 53.24
46 #400 THHN Stranded Copper 1.66 220.96 761.24
1 Red .25 Caliber Load .02 .13 .31
1 1" .300 Drive Pin .02 .13 .30
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" EMT 1 Hole Steel Strap .05 1.92 12.20
3.28 $312.33 $1016.65
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT 4#500
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
46 #500 THHN Stranded Copper 1.93 280.54 947.87
1 1" .300 Drive Pin .02 .13 .30
1 Red .25 Caliber Load .02 .13 .31
1 3-1/2" EMT Steel Set Screw Coup .18 3.63 52.60
1 3-1/2" EMT 1 Hole Steel Strap .05 1.92 12.20
3.40 $355.54 $1150.03
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
