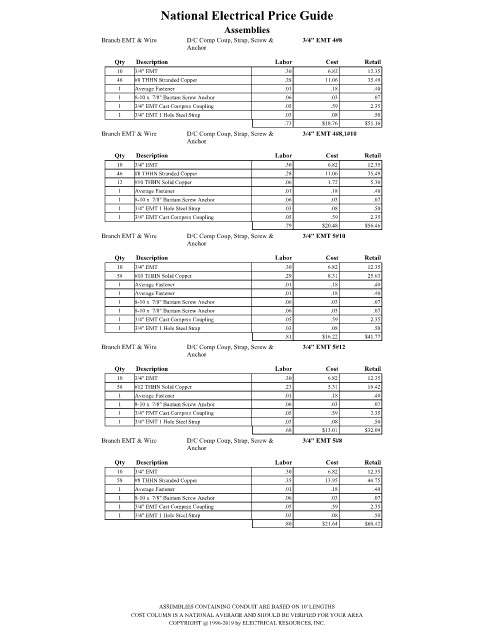

Page 1416 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Comp Coup, Strap, Screw & 3/4" EMT 4#8
Anchor
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.73 $18.76 $51.16
Branch EMT & Wire D/C Comp Coup, Strap, Screw & 3/4" EMT 4#8,1#10
Anchor

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
12 #10 THHN Solid Copper .06 1.72 5.30
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.79 $20.48 $56.46
Branch EMT & Wire D/C Comp Coup, Strap, Screw & 3/4" EMT 5#10
Anchor
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #10 THHN Solid Copper .29 8.31 25.63
1 Average Fastener .01 .18 .40
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.81 $16.22 $41.77
Branch EMT & Wire D/C Comp Coup, Strap, Screw & 3/4" EMT 5#12
Anchor
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #12 THHN Solid Copper .23 5.31 16.42
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.68 $13.01 $32.09
Branch EMT & Wire D/C Comp Coup, Strap, Screw & 3/4" EMT 5#8
Anchor
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #8 THHN Stranded Copper .35 13.95 44.75
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.80 $21.64 $60.42

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
