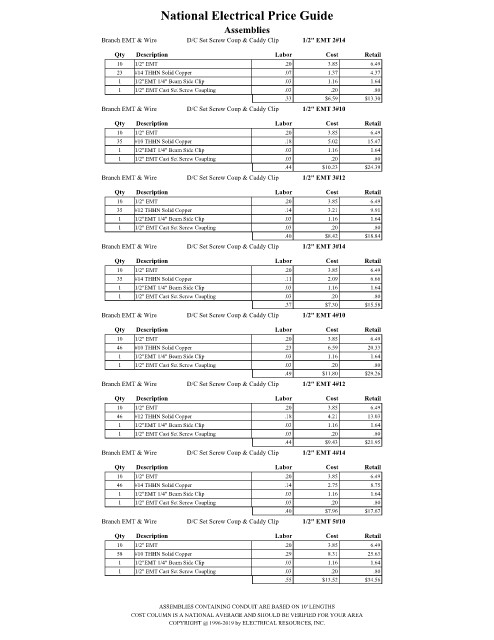

Page 1418 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Set Screw Coup & Caddy Clip 1/2" EMT 2#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #14 THHN Solid Copper .07 1.37 4.37
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.33 $6.59 $13.30
Branch EMT & Wire D/C Set Screw Coup & Caddy Clip 1/2" EMT 3#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #10 THHN Solid Copper .18 5.02 15.47
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.44 $10.23 $24.39
Branch EMT & Wire D/C Set Screw Coup & Caddy Clip 1/2" EMT 3#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #12 THHN Solid Copper .14 3.21 9.91
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.40 $8.42 $18.84
Branch EMT & Wire D/C Set Screw Coup & Caddy Clip 1/2" EMT 3#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #14 THHN Solid Copper .11 2.09 6.66
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.37 $7.30 $15.58
Branch EMT & Wire D/C Set Screw Coup & Caddy Clip 1/2" EMT 4#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #10 THHN Solid Copper .23 6.59 20.33
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.49 $11.80 $29.26
Branch EMT & Wire D/C Set Screw Coup & Caddy Clip 1/2" EMT 4#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #12 THHN Solid Copper .18 4.21 13.03
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.44 $9.43 $21.95
Branch EMT & Wire D/C Set Screw Coup & Caddy Clip 1/2" EMT 4#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #14 THHN Solid Copper .14 2.75 8.75
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.40 $7.96 $17.67
Branch EMT & Wire D/C Set Screw Coup & Caddy Clip 1/2" EMT 5#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #10 THHN Solid Copper .29 8.31 25.63
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.55 $13.52 $34.56

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
