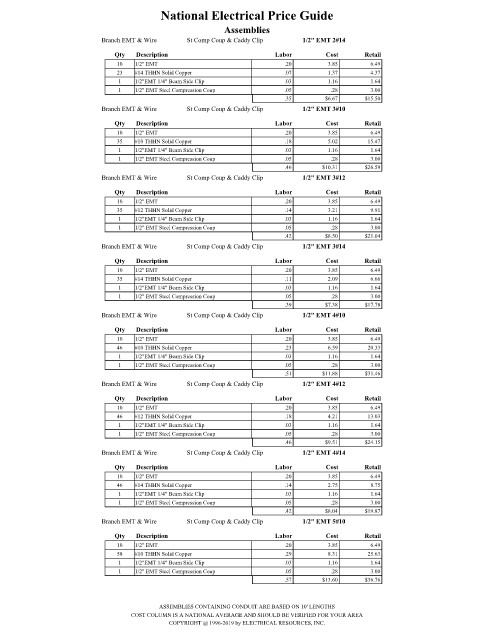

Page 1439 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire St Comp Coup & Caddy Clip 1/2" EMT 2#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #14 THHN Solid Copper .07 1.37 4.37
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.35 $6.67 $15.50
Branch EMT & Wire St Comp Coup & Caddy Clip 1/2" EMT 3#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #10 THHN Solid Copper .18 5.02 15.47
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.46 $10.31 $26.59
Branch EMT & Wire St Comp Coup & Caddy Clip 1/2" EMT 3#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #12 THHN Solid Copper .14 3.21 9.91
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.42 $8.50 $21.04
Branch EMT & Wire St Comp Coup & Caddy Clip 1/2" EMT 3#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #14 THHN Solid Copper .11 2.09 6.66
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.39 $7.38 $17.78
Branch EMT & Wire St Comp Coup & Caddy Clip 1/2" EMT 4#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #10 THHN Solid Copper .23 6.59 20.33
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.51 $11.88 $31.46
Branch EMT & Wire St Comp Coup & Caddy Clip 1/2" EMT 4#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #12 THHN Solid Copper .18 4.21 13.03
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.46 $9.51 $24.15
Branch EMT & Wire St Comp Coup & Caddy Clip 1/2" EMT 4#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #14 THHN Solid Copper .14 2.75 8.75
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.42 $8.04 $19.87
Branch EMT & Wire St Comp Coup & Caddy Clip 1/2" EMT 5#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #10 THHN Solid Copper .29 8.31 25.63
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.57 $13.60 $36.76

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
