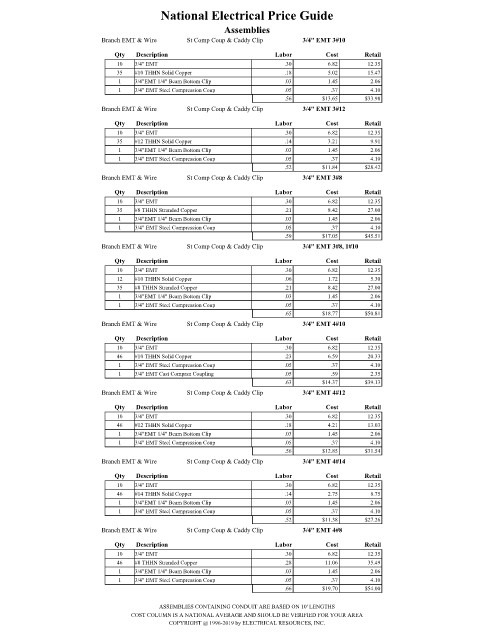

Page 1441 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire St Comp Coup & Caddy Clip 3/4" EMT 3#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #10 THHN Solid Copper .18 5.02 15.47
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.56 $13.65 $33.98
Branch EMT & Wire St Comp Coup & Caddy Clip 3/4" EMT 3#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #12 THHN Solid Copper .14 3.21 9.91
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.52 $11.84 $28.42
Branch EMT & Wire St Comp Coup & Caddy Clip 3/4" EMT 3#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #8 THHN Stranded Copper .21 8.42 27.00
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.59 $17.05 $45.51
Branch EMT & Wire St Comp Coup & Caddy Clip 3/4" EMT 3#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
35 #8 THHN Stranded Copper .21 8.42 27.00
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.65 $18.77 $50.81
Branch EMT & Wire St Comp Coup & Caddy Clip 3/4" EMT 4#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #10 THHN Solid Copper .23 6.59 20.33
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.63 $14.37 $39.13
Branch EMT & Wire St Comp Coup & Caddy Clip 3/4" EMT 4#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #12 THHN Solid Copper .18 4.21 13.03
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.56 $12.85 $31.54
Branch EMT & Wire St Comp Coup & Caddy Clip 3/4" EMT 4#14
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #14 THHN Solid Copper .14 2.75 8.75
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.52 $11.38 $27.26
Branch EMT & Wire St Comp Coup & Caddy Clip 3/4" EMT 4#8

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.66 $19.70 $54.00

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
