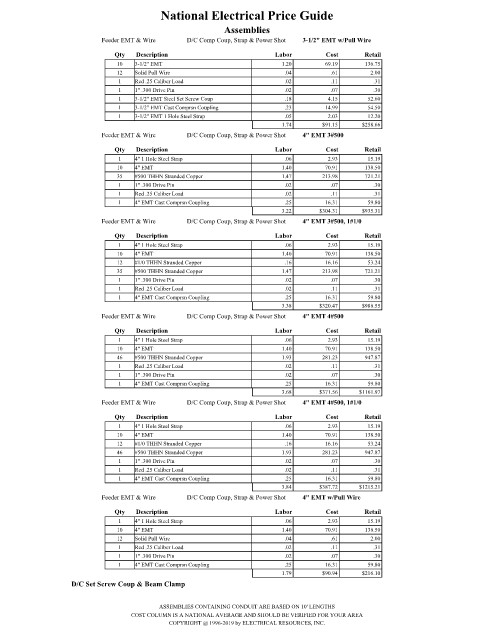

Page 1751 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 3-1/2" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
1 3-1/2" EMT Cast Comprsn Coupling .23 14.99 54.50
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1.74 $91.15 $258.66
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 4" EMT 3#500

Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Cast Comprsn Coupling .25 16.31 59.80
3.22 $304.31 $935.31
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 4" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Cast Comprsn Coupling .25 16.31 59.80
3.38 $320.47 $988.55
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 4" EMT 4#500

Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 4" EMT Cast Comprsn Coupling .25 16.31 59.80
3.68 $371.56 $1161.97
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 4" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Cast Comprsn Coupling .25 16.31 59.80
3.84 $387.72 $1215.21
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 4" EMT w/Pull Wire

Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 4" EMT Cast Comprsn Coupling .25 16.31 59.80
1.79 $90.94 $216.10
D/C Set Screw Coup & Beam Clamp

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
