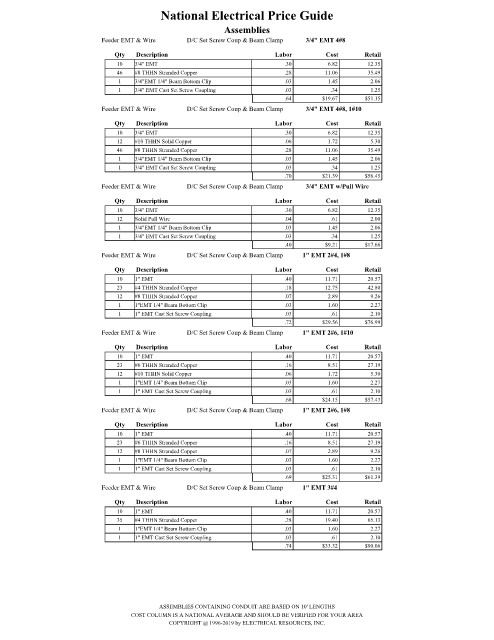

Page 1753 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3/4" EMT 4#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.64 $19.67 $51.15
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3/4" EMT 4#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
46 #8 THHN Stranded Copper .28 11.06 35.49
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.70 $21.39 $56.45
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.40 $9.21 $17.66
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 1" EMT 2#4, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
23 #4 THHN Stranded Copper .18 12.75 42.80
12 #8 THHN Stranded Copper .07 2.89 9.26
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
.72 $29.56 $76.99
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 1" EMT 2#6, 1#10
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
23 #6 THHN Stranded Copper .16 8.51 27.19
12 #10 THHN Solid Copper .06 1.72 5.30
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
.68 $24.15 $57.43
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 1" EMT 2#6, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
23 #6 THHN Stranded Copper .16 8.51 27.19
12 #8 THHN Stranded Copper .07 2.89 9.26
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
.69 $25.31 $61.39
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 1" EMT 3#4
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #4 THHN Stranded Copper .28 19.40 65.13
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
.74 $33.32 $90.06

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
