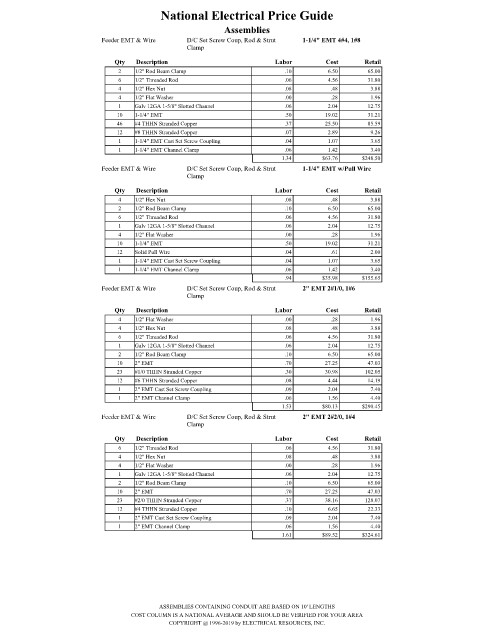

Page 1783 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 1-1/4" EMT 4#4, 1#8
Clamp
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 1-1/4" EMT .50 19.02 31.21
46 #4 THHN Stranded Copper .37 25.50 85.59
12 #8 THHN Stranded Copper .07 2.89 9.26
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT Channel Clamp .06 1.42 3.40
1.34 $63.76 $248.50
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 1-1/4" EMT w/Pull Wire
Clamp
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
10 1-1/4" EMT .50 19.02 31.21
12 Solid Pull Wire .04 .61 2.00
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT Channel Clamp .06 1.42 3.40
.94 $35.98 $155.65
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 2" EMT 2#1/0, 1#6
Clamp
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 2" EMT .70 27.25 47.03
23 #1/0 THHN Stranded Copper .30 30.98 102.05
12 #6 THHN Stranded Copper .08 4.44 14.19
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT Channel Clamp .06 1.56 4.40
1.53 $80.13 $290.45
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 2" EMT 2#2/0, 1#4
Clamp
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 2" EMT .70 27.25 47.03
23 #2/0 THHN Stranded Copper .37 38.16 128.07
12 #4 THHN Stranded Copper .10 6.65 22.33
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT Channel Clamp .06 1.56 4.40
1.61 $89.52 $324.61

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
