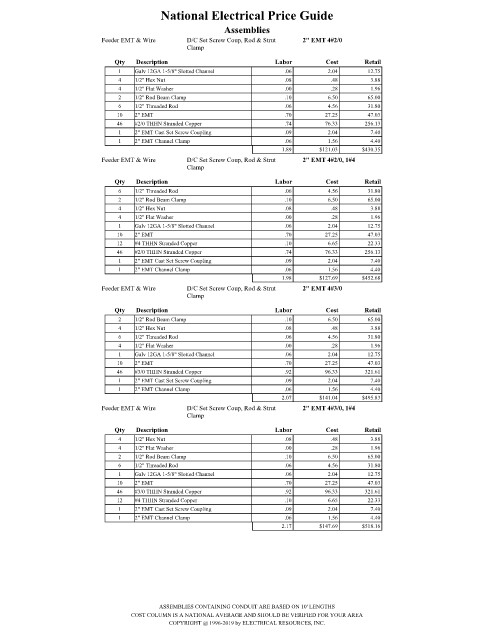

Page 1788 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 2" EMT 4#2/0
Clamp
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 2" EMT .70 27.25 47.03
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT Channel Clamp .06 1.56 4.40
1.89 $121.03 $430.35
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 2" EMT 4#2/0, 1#4
Clamp

Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT Channel Clamp .06 1.56 4.40
1.98 $127.69 $452.68
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 2" EMT 4#3/0
Clamp
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 96.33 321.61
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT Channel Clamp .06 1.56 4.40
2.07 $141.04 $495.83
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 2" EMT 4#3/0, 1#4
Clamp
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 96.33 321.61
12 #4 THHN Stranded Copper .10 6.65 22.33
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT Channel Clamp .06 1.56 4.40
2.17 $147.69 $518.16

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
