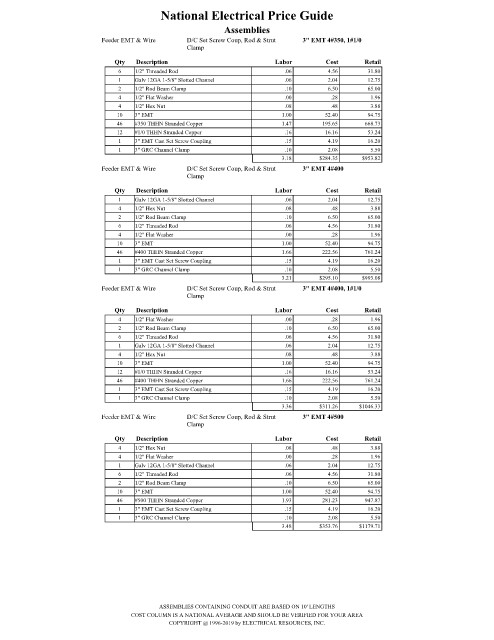

Page 1797 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 3" EMT 4#350, 1#1/0
Clamp
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 3" EMT 1.00 52.40 94.75
46 #350 THHN Stranded Copper 1.47 195.65 668.73
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" GRC Channel Clamp .10 2.08 5.50
3.18 $284.35 $953.82
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 3" EMT 4#400
Clamp
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
10 3" EMT 1.00 52.40 94.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" GRC Channel Clamp .10 2.08 5.50
3.21 $295.10 $993.08
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 3" EMT 4#400, 1#1/0
Clamp
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" GRC Channel Clamp .10 2.08 5.50
3.36 $311.26 $1046.33
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 3" EMT 4#500
Clamp
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" GRC Channel Clamp .10 2.08 5.50
3.48 $353.76 $1179.71

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
