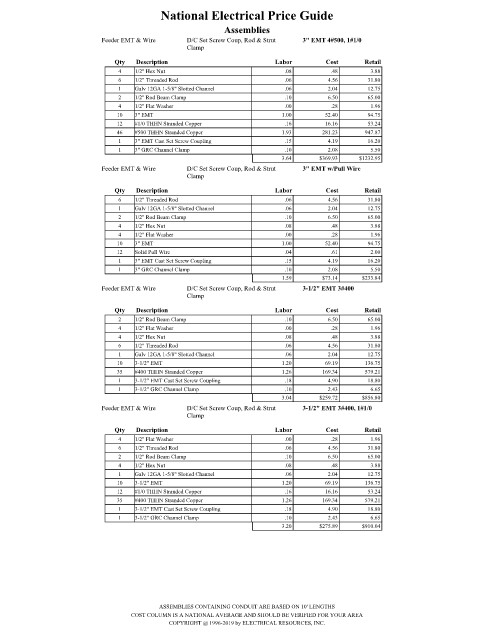

Page 1798 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 3" EMT 4#500, 1#1/0
Clamp
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" GRC Channel Clamp .10 2.08 5.50
3.64 $369.93 $1232.95
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 3" EMT w/Pull Wire
Clamp
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
10 3" EMT 1.00 52.40 94.75
12 Solid Pull Wire .04 .61 2.00
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" GRC Channel Clamp .10 2.08 5.50
1.59 $73.14 $233.84
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 3-1/2" EMT 3#400
Clamp
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.04 $259.72 $856.80
Feeder EMT & Wire D/C Set Screw Coup, Rod & Strut 3-1/2" EMT 3#400, 1#1/0
Clamp
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.20 $275.89 $910.04

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
