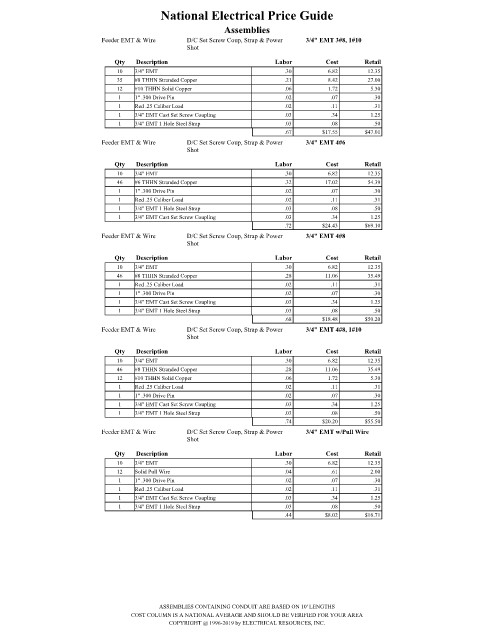

Page 1803 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 3#8, 1#10
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #8 THHN Stranded Copper .21 8.42 27.00
12 #10 THHN Solid Copper .06 1.72 5.30
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.67 $17.55 $47.01
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 4#6
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #6 THHN Stranded Copper .32 17.02 54.39
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.72 $24.43 $69.10
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 4#8
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.68 $18.48 $50.20
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 4#8, 1#10
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
12 #10 THHN Solid Copper .06 1.72 5.30
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.74 $20.20 $55.50
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT w/Pull Wire
Shot

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.44 $8.02 $16.71

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
