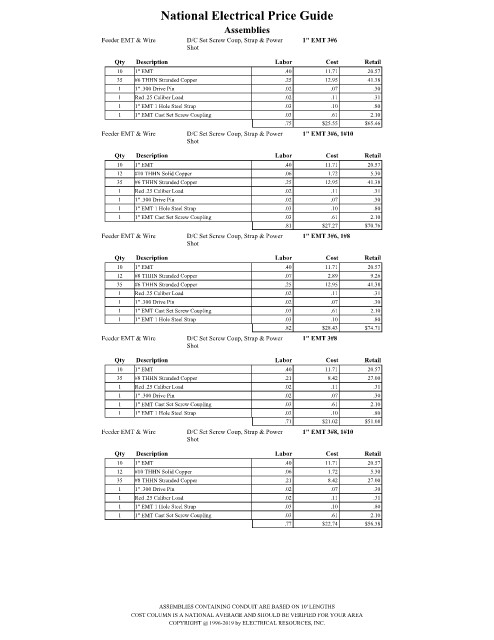

Page 1805 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1" EMT 3#6
Shot
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #6 THHN Stranded Copper .25 12.95 41.38
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
.75 $25.55 $65.46
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1" EMT 3#6, 1#10
Shot

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.72 5.30
35 #6 THHN Stranded Copper .25 12.95 41.38
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
.81 $27.27 $70.76
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1" EMT 3#6, 1#8
Shot
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #8 THHN Stranded Copper .07 2.89 9.26
35 #6 THHN Stranded Copper .25 12.95 41.38
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.82 $28.43 $74.71
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1" EMT 3#8
Shot
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #8 THHN Stranded Copper .21 8.42 27.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.71 $21.02 $51.08
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1" EMT 3#8, 1#10
Shot

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.72 5.30
35 #8 THHN Stranded Copper .21 8.42 27.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
.77 $22.74 $56.38

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
