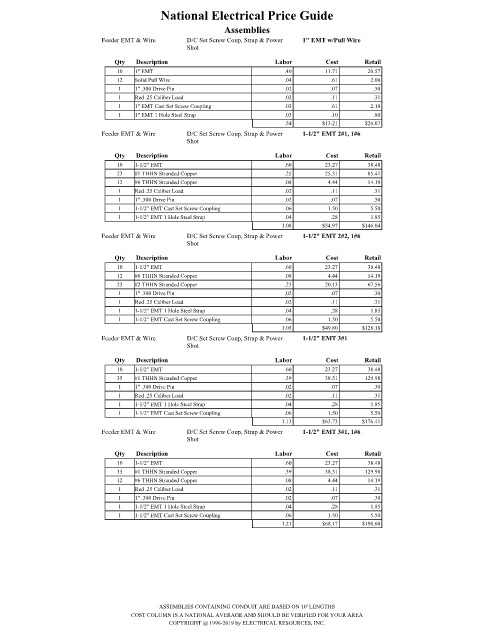

Page 1807 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1" EMT w/Pull Wire
Shot
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.54 $13.21 $26.07
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 2#1, 1#6
Shot

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
23 #1 THHN Stranded Copper .25 25.31 85.41
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.08 $54.97 $146.04
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 2#2, 1#6
Shot
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
23 #2 THHN Stranded Copper .23 20.13 67.56
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1.05 $49.80 $128.18
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 3#1
Shot
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #1 THHN Stranded Copper .39 38.51 129.98
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1.13 $63.73 $176.41
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 3#1, 1#6
Shot

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #1 THHN Stranded Copper .39 38.51 129.98
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1.21 $68.17 $190.60

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
