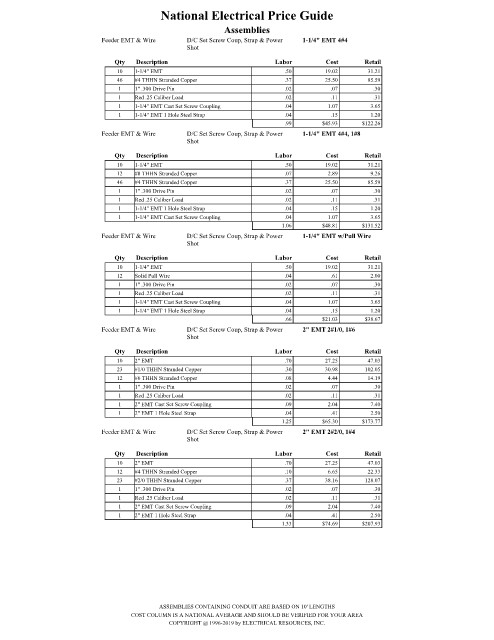

Page 1812 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 4#4
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
46 #4 THHN Stranded Copper .37 25.50 85.59
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
.99 $45.93 $122.26
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 4#4, 1#8
Shot

Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
46 #4 THHN Stranded Copper .37 25.50 85.59
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1.06 $48.81 $131.52
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT w/Pull Wire
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
.66 $21.03 $38.67
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 2#1/0, 1#6
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
23 #1/0 THHN Stranded Copper .30 30.98 102.05
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.25 $65.30 $173.77
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 2#2/0, 1#4
Shot

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
23 #2/0 THHN Stranded Copper .37 38.16 128.07
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.33 $74.69 $207.93

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
