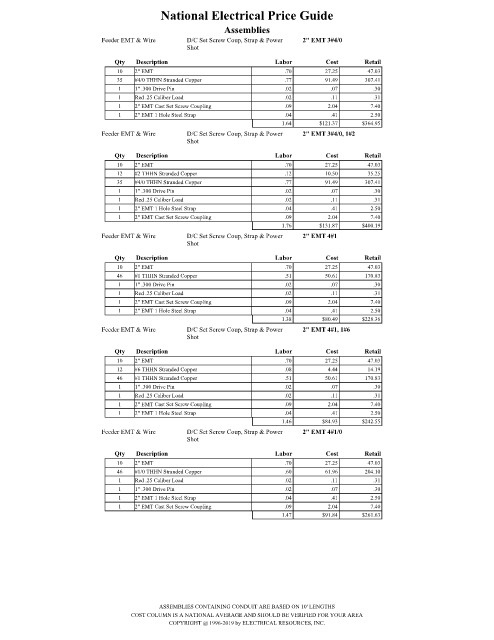

Page 1815 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 3#4/0
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.64 $121.37 $364.95
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 3#4/0, 1#2
Shot

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.76 $131.87 $400.19
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#1
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #1 THHN Stranded Copper .51 50.61 170.83
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.38 $80.49 $228.36
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#1, 1#6
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #1 THHN Stranded Copper .51 50.61 170.83
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.46 $84.93 $242.55
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#1/0
Shot

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.47 $91.84 $261.63

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
