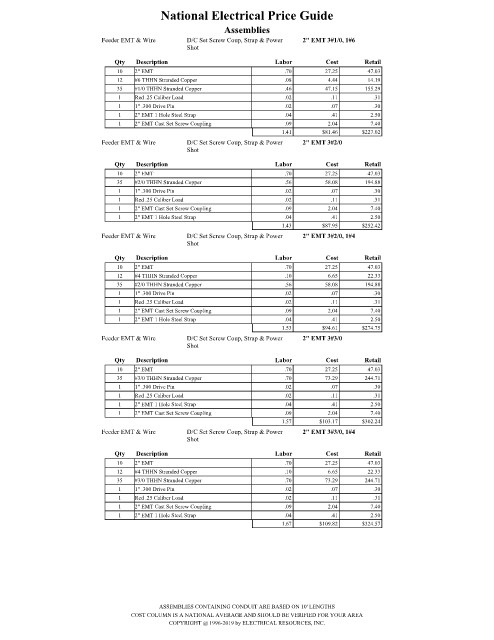

Page 1814 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 3#1/0, 1#6
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.44 14.19
35 #1/0 THHN Stranded Copper .46 47.15 155.29
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.41 $81.46 $227.02
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 3#2/0
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #2/0 THHN Stranded Copper .56 58.08 194.88
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.43 $87.95 $252.42
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 3#2/0, 1#4
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
35 #2/0 THHN Stranded Copper .56 58.08 194.88
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.53 $94.61 $274.75
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 3#3/0
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #3/0 THHN Stranded Copper .70 73.29 244.71
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.57 $103.17 $302.24
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 3#3/0, 1#4
Shot

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
35 #3/0 THHN Stranded Copper .70 73.29 244.71
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.67 $109.82 $324.57

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
