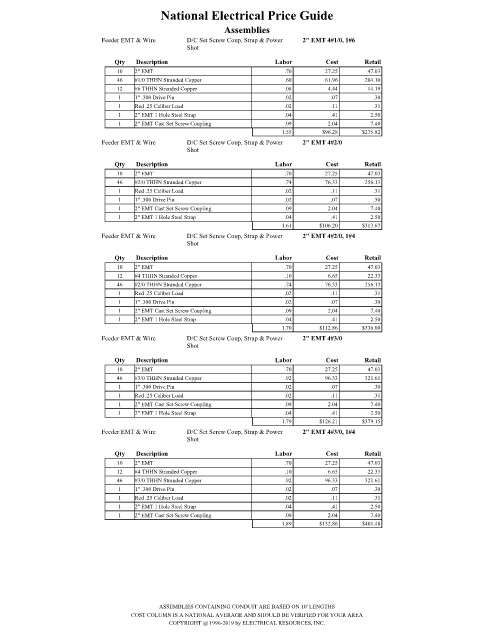

Page 1816 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#1/0, 1#6
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.55 $96.28 $275.82
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#2/0
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.61 $106.20 $313.67
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#2/0, 1#4
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.70 $112.86 $336.00
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#3/0
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 96.33 321.61
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.79 $126.21 $379.15
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#3/0, 1#4
Shot

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
46 #3/0 THHN Stranded Copper .92 96.33 321.61
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.89 $132.86 $401.48

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
