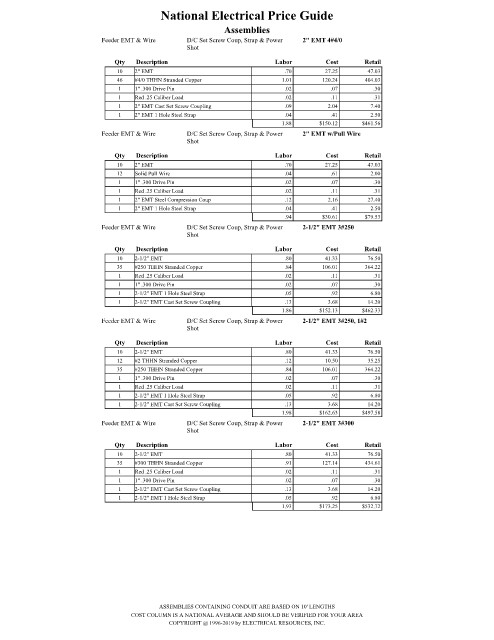

Page 1817 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT 4#4/0
Shot
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #4/0 THHN Stranded Copper 1.01 120.24 404.03
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.88 $150.12 $461.56
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2" EMT w/Pull Wire
Shot

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Steel Compression Coup .12 2.16 27.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
.94 $30.61 $79.53
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2-1/2" EMT 3#250
Shot
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #250 THHN Stranded Copper .84 106.01 364.22
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1.86 $152.13 $462.33
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2-1/2" EMT 3#250, 1#2
Shot
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #250 THHN Stranded Copper .84 106.01 364.22
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1.98 $162.63 $497.58
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2-1/2" EMT 3#300
Shot
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #300 THHN Stranded Copper .91 127.14 434.61
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1.93 $173.25 $532.72

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
