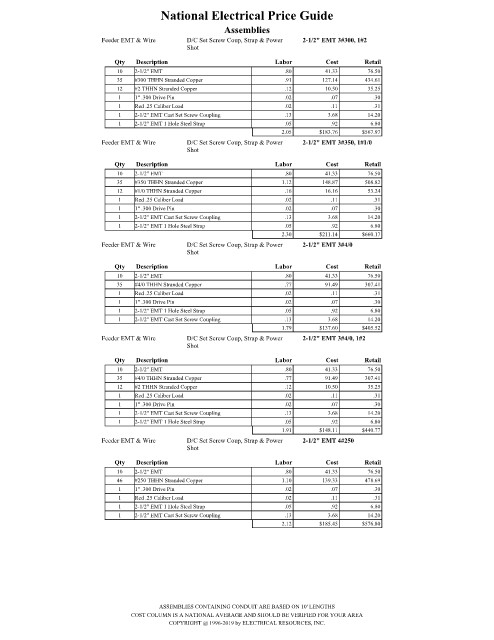

Page 1818 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2-1/2" EMT 3#300, 1#2
Shot
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #300 THHN Stranded Copper .91 127.14 434.61
12 #2 THHN Stranded Copper .12 10.50 35.25
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
2.05 $183.76 $567.97
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2-1/2" EMT 3#350, 1#1/0
Shot
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #350 THHN Stranded Copper 1.12 148.87 508.82
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
2.30 $211.14 $660.17
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2-1/2" EMT 3#4/0
Shot

Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1.79 $137.60 $405.52
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2-1/2" EMT 3#4/0, 1#2
Shot
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #4/0 THHN Stranded Copper .77 91.49 307.41
12 #2 THHN Stranded Copper .12 10.50 35.25
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1.91 $148.11 $440.77
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 2-1/2" EMT 4#250
Shot
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
2.12 $185.45 $576.80

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
