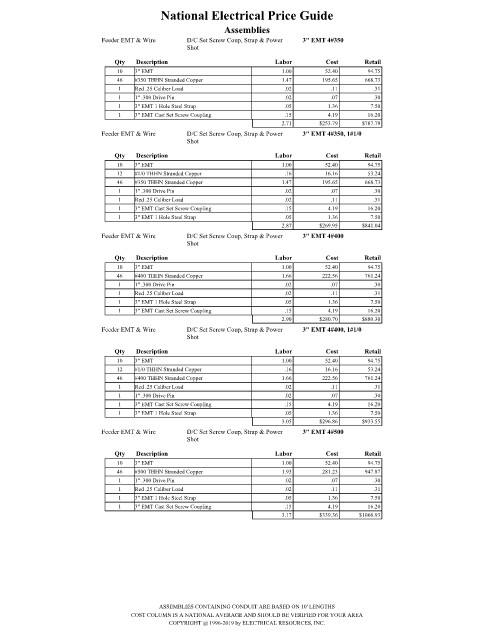

Page 1823 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3" EMT 4#350
Shot
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #350 THHN Stranded Copper 1.47 195.65 668.73
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.71 $253.79 $787.79
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3" EMT 4#350, 1#1/0
Shot

Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #350 THHN Stranded Copper 1.47 195.65 668.73
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
2.87 $269.95 $841.04
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3" EMT 4#400
Shot
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.90 $280.70 $880.30
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3" EMT 4#400, 1#1/0
Shot
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
3.05 $296.86 $933.55
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3" EMT 4#500
Shot

Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
3.17 $339.36 $1066.93

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
