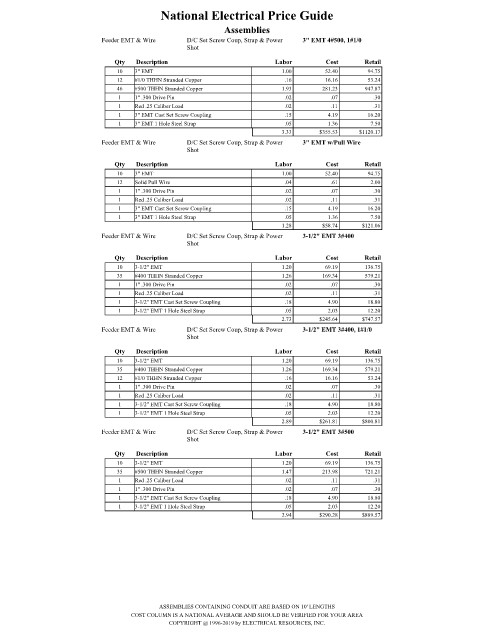

Page 1824 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3" EMT 4#500, 1#1/0
Shot
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
3.33 $355.53 $1120.17
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3" EMT w/Pull Wire
Shot
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1.28 $58.74 $121.06
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT 3#400
Shot
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
2.73 $245.64 $747.57
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT 3#400, 1#1/0
Shot
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
2.89 $261.81 $800.81
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT 3#500
Shot

Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
2.94 $290.28 $889.57

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
