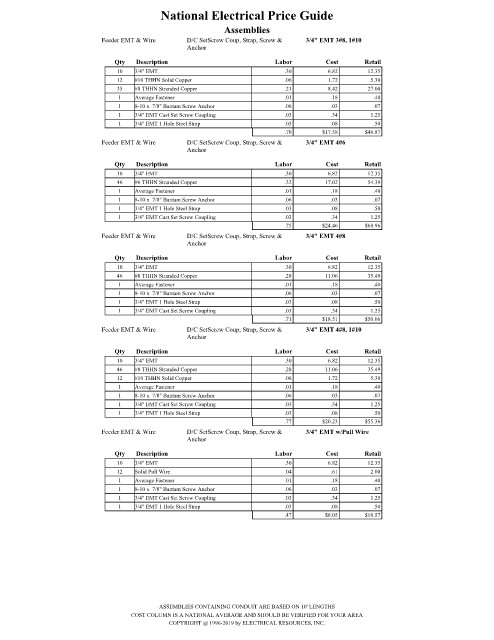

Page 1828 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3/4" EMT 3#8, 1#10
Anchor
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
35 #8 THHN Stranded Copper .21 8.42 27.00
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.70 $17.58 $46.87
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3/4" EMT 4#6
Anchor
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #6 THHN Stranded Copper .32 17.02 54.39
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.75 $24.46 $68.96
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3/4" EMT 4#8
Anchor
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.71 $18.51 $50.06
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3/4" EMT 4#8, 1#10
Anchor
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
12 #10 THHN Solid Copper .06 1.72 5.30
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.77 $20.23 $55.36
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3/4" EMT w/Pull Wire
Anchor

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.47 $8.05 $16.57

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
