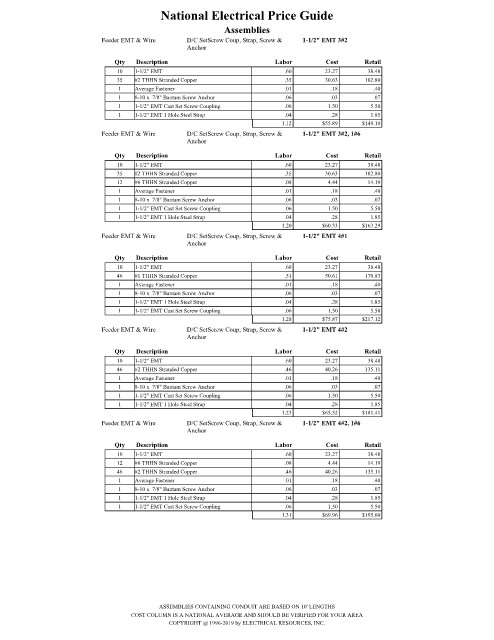

Page 1833 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/2" EMT 3#2
Anchor
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #2 THHN Stranded Copper .35 30.63 102.80
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.12 $55.89 $149.10
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/2" EMT 3#2, 1#6
Anchor

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #2 THHN Stranded Copper .35 30.63 102.80
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.20 $60.33 $163.29
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/2" EMT 4#1
Anchor
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #1 THHN Stranded Copper .51 50.61 170.83
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1.28 $75.87 $217.12
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/2" EMT 4#2
Anchor
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #2 THHN Stranded Copper .46 40.26 135.11
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.23 $65.52 $181.41
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/2" EMT 4#2, 1#6
Anchor
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #2 THHN Stranded Copper .46 40.26 135.11
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1.31 $69.96 $195.60

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
